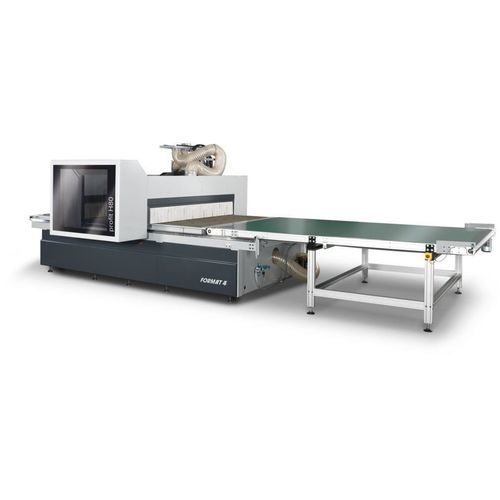

3/4-axis machining center H80I

verticalfor woodwith fixed table

Overview
The profit H80I CNC machining centre by FORMAT4 is designed for panel processing in furniture and joinery production, combining cutting, drilling and milling in one pass. The machine supports nested production workflows and can be integrated with loading/unloading and automation modules to scale from standalone operation to fully automated cells.

Key advantages

• Integrated panel processing: cutting, drilling and milling in one cycle
• Configurable automation from standalone to fully automated cells
• High-speed milling spindles with HSK F63 interface
• Matrix vacuum table for full-panel support and nesting efficiency
• Flexible drilling head options for cabinet and all-round processing
• Integrated software chain: F4®Solutions / F4®Integrate for CAD/CAM and nesting
• Modular extraction and status indication for workshop ergonomics

Highlights & features

• Smart Zoning: fast handling and quick changeover between panel formats (examples: 3090 x 2100 mm, 3090 x 1530 mm, 2500 x 1250 mm)
• Vacuum pods support for small and complex parts
• Matrix table with optional 30 x 30 mm high-flow grid for improved hold-down
• Position-controlled extraction connection directing suction between drilling head and milling spindle
• Compact extraction bell to optimise extraction volume
• Status indicator lighting for quick machine state overview

Spindle
Milling spindle available with motor power options of 10, 12 or 15 kW (series dependent) and speeds up to 24,000 rpm. Motor is inverter-controlled and mounted on the Z-axis drilling head support. Dual linear guides and ground ball screws ensure precise vertical positioning. Tool interface: automatic HSK F63 clamping with sensor checks and pneumatic cleaning.

The C-axis
Optional interpolating fourth axis (360°) with compressed air interface for aggregates, available for complex machining and indexable operations.

Individual drill head configuration
Drilling head options include vertical spindles only or combinations with a grooving saw for vertical and horizontal processing. Drilling head motors are inverter-controlled up to 7,500 rpm.

Automatic measuring system of the tool length
Automatic tool length measurement stores each tool length in the database with 0.01 mm accuracy to simplify tool management and reduce setup time.

Perfect nesting with the matrix table
The phenolic resin vacuum matrix table provides full panel support and exact positioning for nesting. Optional upgrade to a 30 x 30 mm high-flow matrix improves hold-down for small or complex shapes.

Smart Zoning
Smart Zoning enables quick processing of multiple panel formats and reduces changeover time to increase throughput and flexibility.

Vacuum pods
Support for vacuum block pods increases versatility for a wide range of part sizes and shapes.

Fence options
Optional fences can be mounted left or right to improve operator comfort; continuous fences available for automated conveyor offload.

Position-controlled extraction connection
Automatic allocation of extraction capacity between drilling head and main spindle depending on active tool, improving dust extraction efficiency.

Extraction bell
Compact extraction bell optimises suction performance while reducing required extraction volume.

Height adjustable tool changer (including cover)
Height-adjustable linear tool changer on the machine base protects tool sockets, speeds tool changes and can hold up to 12 tools and 3 units with protective cover.

Status indicator
Multi-colour lighting system communicates machine status at a glance to operators for improved workshop workflow.

F4®Solutions & F4®Integrate
Integrated software ecosystem covers CAD/CAM, nesting optimisation, CAM tool libraries and machine data transfer to create a continuous production chain and support Industry 4.0 integration.

Technical specifications

• Model: profit H80I
• Brand: FORMAT4
• Spindle motor power options: 10 kW, 12 kW, 15 kW (series dependent)
• Spindle speed: up to 24,000 rpm (milling spindle)
• Tool interface: HSK F63 with automatic clamping and pneumatic cleaning
• C-axis: optional interpolating 4th axis (360°) with compressed air interface
• Drilling head: configurable; inverter-controlled up to 7,500 rpm
• Tool measurement accuracy: 0.01 mm
• Vacuum table: phenolic resin; optional 30 x 30 mm high-flow matrix
• Tool changer: height-adjustable, up to 12 tools and 3 units, with cover
• Automation: scalable loading/unloading and cell integration to full automation
• Panel formats (Smart Zoning examples): 3090 x 2100 mm, 3090 x 1530 mm, 2500 x 1250 mm
• Extraction: extraction bell and position-controlled extraction connection
• Software: F4®Solutions / F4®Integrate for CAD/CAM, nesting and machine control
