5-axis CNC machining center H350R

universalfor plasticsdrilling

Overview

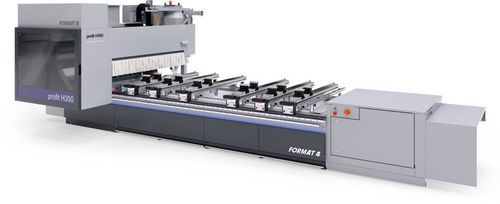

The profit H350R CNC machining centre from Format4 (Felder Group) is a 5-axis machining centre designed for universal workshops and high productivity. It combines a high-performance main spindle with flexible drilling and tooling options, an integrated grooving saw and advanced positioning and handling systems to minimise setup time and material waste while ensuring precise results. The c-tech product line offers options for plastics and composite processing.

Key product description
The reengineered design delivers dynamics and high-end technology. Delivered as a matched complete package including software, tooling and automation solutions, the machine provides a powerful main spindle, up to 18 independent drilling spindles and an integrated grooving saw aggregate, enabling broad processing capabilities and short cycle times.

Highlights

• Tailor-made financing solutions
• Constant high performance in continuous industrial operation
• Customer-specific optimised production solutions
• Solid design with premium components
• Multiple specification packages with high-tech options
• Complete engineering precision
• Premium user ergonomics
• Award-winning design
• Quality and precision from Austria
• Uncompromised productivity
• Comprehensive service before, during and after purchase
• Automation solutions
• Networked workshop capability
• Software and machines from a single supplier

Integrated software & operation
F4®Integrate is the integrated CNC software suite including tool library (F4Toolbox), CAM with integrated CAD (F4Create) and machine operation (F4Operate) on a consistent, intuitive interface. The control features an advanced 24" touch-screen to maximise user-friendliness and productivity.

Positioning & handling systems
The machine offers advanced console and vacuum pod positioning: autoPos (motorised console and vacuum pod positioning) and lightPos (LED visual pod positioning). autoPos provides motor-driven X positioning per console and Y-direction positioning for vacuum cups or frame clamps, automatically positioning up to 6 vacuum pods per console (or 2 frame clamps). lightPos uses LED guidance to visualise suction cup size, position, orientation and console positions to the millimetre.

Other notable features

• Mechanical axis lock for A and C axes to extend spindle life and improve surface finish
• Rotary tool changer mounted on the outrigger with 18 positions (moves with outrigger on X-axis) to minimise tool change times
• Various drill head configurations: vertical spindles only or spindles plus grooving saw for vertical and horizontal processing (inverter motor up to 7,500 rpm)
• Main spindle options: 12 kW standard, optional 15 kW; liquid cooling and high-quality ceramic bearings; inverter speeds up to 24,000 rpm
• Automatic central lubrication for X, Y and Z guide carriages and bearing spindles
• Secure workpiece support via a wide range of vacuum pod shapes and flexible positioning
• Workpiece stop options: rear, centre and optional front stop rows; special stops for veneered panels
• Chip conveyor for offcuts and chips with separation slide and collection container

Suitability
Designed for workshops requiring 5-axis capability at a manageable investment. Especially suitable for cabinet manufacturing, general workshop tasks and processing of panels, plastics and composites when equipped with c-tech options.

Technical specifications

• Model: profit H350R
• Axes: 5-axis CNC machining centre
• Main spindle power: 12 kW standard, optional 15 kW
• Main spindle speed: up to 24,000 rpm (inverter regulated)
• Main spindle cooling: liquid cooling; high-quality ceramic bearings
• Drilling: up to 18 independent drilling spindles (configurable drill head)
• Tool changer: rotary tool changer on outrigger with 18 positions (rotating changer)
• Additional tooling capacity: up to 36 tool positions depending on configuration
• Grooving motor: inverter-controlled up to 7,500 rpm
• Positioning systems: autoPos (motorised console X positioning, Y lifting bars for clamps), lightPos (LED visual pod positioning)
• Vacuum pods: automatic positioning up to 6 pods per console (or 2 frame clamps)
• Guides: hardened/polished linear guides with recirculating ball carriages and cambered rack & pinion positioning on X; recirculating ball spindles on Y/Z
• Axis locking: mechanical lock for A and C axes
• Automatic central lubrication for X, Y, Z guide carriages and bearing spindles
• Chip handling: integrated conveyor with separation slide and collection container
• Control / software: F4®Integrate (F4Toolbox, F4Create, F4Operate) with 24" touch-screen
• Applications: solid wood, panel materials, plastics and composites (with c-tech), aluminium (depending on configuration)
