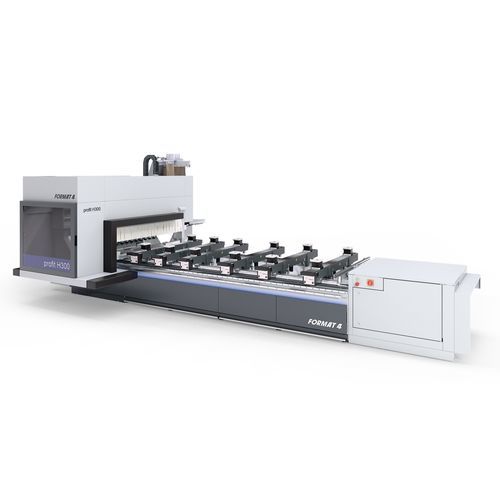

Vertical CNC machining center H300R

for woodgantry12 tools

Overview
The profit H300R is a gantry-style CNC machining center designed for panel and solid wood processing with extended Y-axis capacity. It addresses the growing demand for customized furniture, doors and windows by offering flexible configuration options, large working fields and integrated software/hardware solutions from Format4 to support productive, single-supplier workflows.

Key highlights

• Tailor-made financing solutions
• Consistent high performance for industrial continuous operation
• Customer-specific optimized production workflows
• Robust gantry design with premium components
• Multiple specification packages with advanced technologies
• Complete engineering precision
• Ergonomic user experience
• Award-winning industrial design
• Quality and precision from Austria (Format4)
• High productivity and process reliability
• Comprehensive service package before, during and after purchase
• Automation and networked workshop integration options
• Software and machines from a single supplier (F4Solutions)

Main features & functions

• F4®Integrate CNC software: integrated tool library (F4Toolbox), programming (F4Create) and machine operation (F4Operate) with an intuitive single-screen interface; G-Code compatible for easy connection of external programs.
• lightPos: LED vacuum pod positioning system with over 6000 LEDs for fast, visual and precise placement of vacuum pods/consoles; visualizes suction cup size, position, orientation and workpiece dimensions.
• autoPos: automatic console and vacuum pod positioning with independently controlled motors for X-axis console movement and automatic Y-axis pod/clamp positioning; includes integrated cleaning/blow-off device; supports up to 6 vacuum pods per console or 2 frame clamps and repositioning during pendulum operation (depending on configuration).
• Panel activation / Console deactivation: compressed-air controlled frame clamp compatibility; individual console deactivation enables waste removal without releasing vacuum, maintaining exact workpiece positioning for subsequent operations.
• Positioning display: simultaneous display of workpiece, supports and vacuum pads on the CNC board to avoid collisions; exact vacuum pod positions indicated by laser; lightPos available as an extension.
• Secure workpiece support: wide range of vacuum pod geometries and flexible use of suction pads and clamping devices across consoles.
• Frame processing: supports vacuum pads and frame clamping devices for frame components; frame clamps use compressed air for increased clamping force; compressed air connections located on the console base.
• Two working field sizes: profit H300 16.33 (X = 3300 mm, Y = 1580 mm, Z = 250 mm passage height) and profit H300 16.53 (X = 5300 mm, Y = 1580 mm, Z = 250 mm passage height).
• Rows of stops: rear and centre fence rows standard; optional front stop row for H300 series; solid cylinder stops provide flexible referencing of small to large workpieces.
• Maintenance opening: easily opened hood for quick access when changing drills or performing maintenance.
• Intuitive 24" touch-screen control: clearly structured, self-explanatory interface with graphical controls for fast, accurate operation.
• Status indicator lighting: multi-colour lighting system to display machine status at a glance.
• Workpiece feeding rails / loading supports: assist loading and unloading of large or heavy workpieces to enable single-operator handling.
• Template milling: dedicated connection for templates to secure complex components that are not suitable for vacuum pods.

Technical specifications

• Model family: profit H300R (Format4)
• Working field options: profit H300 16.33 - X = 3300 mm, Y = 1580 mm, Z = 250 mm (passage height from console); profit H300 16.53 - X = 5300 mm, Y = 1580 mm, Z = 250 mm (passage height from console)
• Tool positions: up to 36 tool positions (site dependent)
• Tool changer: 12-position linear tool changer (site dependent)
• Machine design: gantry (bridge) design with welded shaped-tube chassis
• Vacuum/clamping: flexible vacuum pod geometries and quantities; support for frame clamping devices (compressed air)
• Automation options: autoPos (automatic console and pod positioning), lightPos (LED positioning), advanced pod positioning software features
• Control / Software: F4®Integrate (F4Toolbox, F4Create, F4Operate) integrated CNC software, G-Code compatible
• User interface: 24" touch-screen control
• Maintenance: easy-opening hood for quick tool change and maintenance
