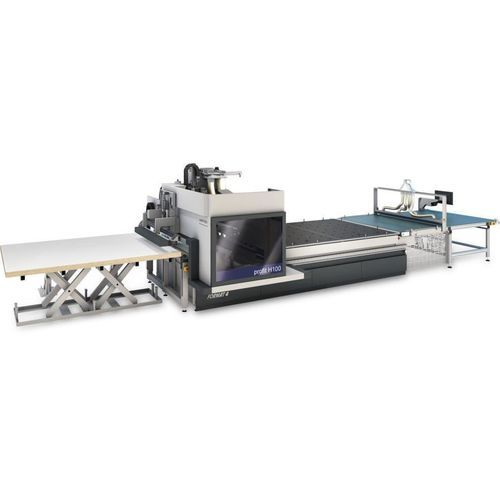

3-axis CNC machining center H100

verticalHSK F63milling

Overview
The FORMAT4 profit H100 is a nesting CNC machining centre for panel cutting, drilling and milling designed for modern carpentry and joinery workshops. It performs complete custom-made furniture production — all holes, grooves and connections — in a single operation. Nesting technology maximizes material and time savings. The machine is extendable to full automation with various loading and unloading solutions to reach high productivity.

Key product description
Available in four sizes (16.38, 22.32, 22.43 & 22.61). Features include integrated SMART ZONING vacuum management, advanced automation options, high-performance drill heads, recessed fence rows for unrestricted spindle use and a large Z passage of 200 mm for flexible machining of tall workpieces. Standard and optional tool changers plus pick-up space for a large saw blade provide up to 35 tool positions. Automatic pre-labelling on the loading table reduces errors and shortens processing times.

Highlights

• Smart Zoning: fast processing of multiple panel formats and quick format change
• Position-controlled extraction connection: dynamic allocation of extraction between drill head and main spindle
• Automation solutions: scalable to full automation with several loading/unloading options

Product advantages & USP

• Tailor-made financing solutions
• Consistent high performance for industrial continuous operation
• Customer-specific optimized production solutions
• Solid design with premium components
• Multiple specification packages with high-tech options
• Complete engineering precision
• Premium user comfort
• Award-winning design
• Quality and precision from Austria
• Uncompromised productivity
• Comprehensive service package before, during and after purchase
• Automation solutions and networked workshop options
• Software and machines from a single supplier

Details & Features
F4®Integrate software ecosystem: tool library (F4Toolbox), integrated CAD/CAM (F4Create), machine operation control (F4Operate) — one intuitive interface for CNC workflows. G-code based control enables connection of external industry programs.

Spindle options: motor power 10, 12 or 15 kW (series dependent) with speeds up to 24,000 rpm; inverter-controlled; direct attachment to drilling head support in Z axis; dual linear guides and ground ball screws for precise vertical positioning; automatic HSK F63 tool clamping with sensor check and pneumatic tool holder cleaning. Optional C-axis as fourth interpolating axis (360°) with compressed air interface.

Drill head: configurable layouts (vertical spindles only or spindles plus grooving saw for vertical and horizontal processing). Inverter-controlled motor up to 7,500 rpm.

Tool management: automatic tool length measurement with 0.01 mm parameterization; automatic labelling on loading table to minimize errors and reduce processing times.

Workholding & vacuum: phenolic resin table compatible with vacuum block pods; SMART ZONING vacuum management for fast handling of different panel formats (e.g. 3090 x 2100 mm, 3090 x 1530 mm, 2500 x 1250 mm).

Extraction & dust control: extraction bell for optimized suction, position-controlled extraction connection to shift full extraction capacity between drill head and main spindle, upper table extraction to clean surfaces during transport and under-table extraction to remove final chips.

Material handling & automation: optional panel lifting table for automatic loading (stacks positioned and aligned at working height); multiple automation, loading and unloading solutions for maximum productivity.

Maintenance & user convenience: maintenance opening for quick access to change drills or service; status indicator lighting for instant machine status information.

Technical specifications

• Model / Commercial name: profit H100
• Brand: FORMAT4 (Felder Group)
• Available sizes: 16.38, 22.32, 22.43, 22.61 (series variants)
• Z passage (clearance) height: 200 mm
• Maximum tool places: up to 35 (standard tool changer + optional rotary changer + pick-up space for large saw blade)
• Spindle power options: 10 kW, 12 kW or 15 kW (depending on series)
• Spindle speed: up to 24,000 rpm
• Spindle drive: inverter-controlled; HSK F63 automatic tool clamping; pneumatic tool holder cleaning
• C-axis: optional interpolating 4th axis (360°) with compressed air interface
• Drill head: multiple configurations (vertical spindles; spindles + grooving saw); inverter motor up to 7,500 rpm for grooving
• Tool measurement: automatic tool length measurement, accuracy to 0.01 mm
• Vacuum management: SMART ZONING for multiple panel formats and fast format changes
• Worktable: phenolic resin table compatible with vacuum pods
• Extraction: position-controlled extraction connection; extraction bell; upper table extraction; under-table extraction
• Automation: extendable to full automation (loading/unloading solutions, lifting table, conveyor integration)
• Automatic pre-labelling: on loading table to reduce errors and processing time
• Maintenance: easy-access maintenance opening for tool changes and service
• Software: F4®Integrate and F4®Solutions ecosystem (integrated CAD/CAM, nesting optimization, machine data transfer)
