Idler with bearings roller DR-Cx

studurethane

Product Overview

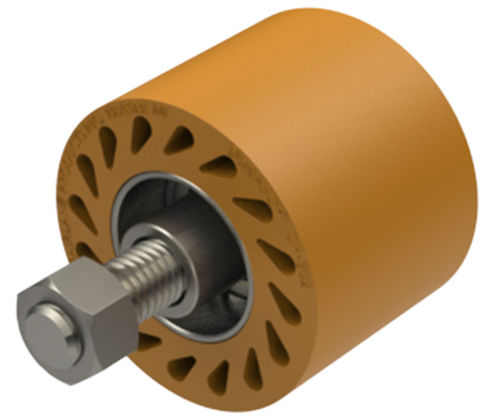

Durasoft rollers have a smooth surface and are permanently bonded to a steel insert with the bearings held in place with snap rings. They come assembled with a socket head cap screw, spacer and locknut for fast easy mounting. The "teardrop" holes allow the roller to flex for firm yet nondamaging contact. Rollers are made from urethane material with hardness ranging from 35 to 95 durometer. Supplied with standard bearings.

Product Types

• DR-Cx — Durasoft Rollers, stud mount, standard bearing
• DR-CP — Durasoft Rollers, stud mount, precision bearing
• DR-CPC — Durasoft Rollers, stud mount, precision sealed bearing

Part Options (excerpt)
Header: ID | SKU | Part Number | Thread | D (in) | L (in) | W (in) | W2 (in) | K (in) | Bearing Type | No. of Bearings | Durometer (Shore A) | Material | Color
113767 | DR-9502-35UR-C | DR-9502-35UR-C | 1/2-13 x 1.75 BHCS | 2.50 | 1.10 | .92 | .12 | .31 | B | 1 | 35 | Urethane | Yellow
113794 | DR-9502-60UR-C | DR-9502-60UR-C | 1/2-13 x 1.75 BHCS | 2.50 | 1.10 | .92 | .12 | .31 | B | 1 | 60 | Urethane | Blue
113802 | DR-9502-80UR-C | DR-9502-80UR-C | 1/2-13 x 1.75 BHCS | 2.50 | 1.10 | .92 | .12 | .31 | B | 1 | 80 | Urethane | Red
113813 | DR-9502-95UR-C | DR-9502-95UR-C | 1/2-13 x 1.75 BHCS | 2.50 | 1.10 | .92 | .12 | .31 | B | 1 | 95 | Urethane | Orange
113415 | DR-502-35UR-C | DR-502-35UR-C | 1/2-13 x 2.75 SHCS | 2.50 | 1.41 | 1.94 | .25 | .38 | C | 1 | 35 | Urethane | Yellow
113433 | DR-502-60UR-C | DR-502-60UR-C | 1/2-13 x 2.75 SHCS | 2.50 | 1.41 | 1.94 | .25 | .38 | C | 1 | 60 | Urethane | Blue
113451 | DR-502-80UR-C | DR-502-80UR-C | 1/2-13 x 2.75 SHCS | 2.50 | 1.41 | 1.94 | .25 | .38 | C | 1 | 80 | Urethane | Red
113489 | DR-502-95UR-C | DR-502-95UR-C | 1/2-13 x 2.75 SHCS | 2.50 | 1.41 | 1.94 | .25 | .38 | C | 1 | 95 | Urethane | Orange

Features / Technical specifications

• Material: Urethane (bonded to a steel insert)
• Steel insert: permanently bonded to urethane roller
• Bearings: supplied as standard bearings (held in place with snap rings)
• Mounting hardware: supplied assembled with socket head cap screw (BHCS or SHCS as specified), spacer and locknut for fast mounting
• Teardrop holes: allow roller flex for firm yet nondamaging contact
• Available durometer range: 35 to 95 Shore A (multiple color coding: e.g. 35 = Yellow, 60 = Blue, 80 = Red, 95 = Orange)
• Typical thread/mount options shown in part table (examples: 1/2-13 x 1.75 BHCS; 1/2-13 x 2.75 SHCS)
• Available bearing variations: standard bearing, precision bearing, precision sealed bearing (product types DR-Cx, DR-CP, DR-CPC)
