Steel conveyor roller DR-Bx

nitrileneoprene®for the packaging industry

Product overview

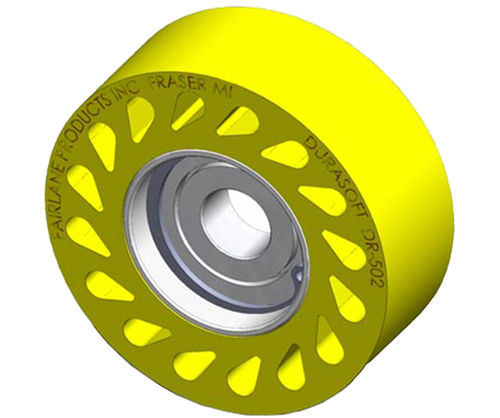

DuraSoft® rollers feature an elastomer cover (urethane, nitrile or neoprene) permanently bonded to a steel insert. Precision sealed bearings are retained with snap rings and the rollers incorporate teardrop holes that allow controlled flex for firm, non‑damaging contact. Available in a range of durometers (20–95 Shore A) and inch-based dimensions.

Key features

• Construction: elastomer bonded to steel insert.
• Bearings: precision sealed (snap ring retention).
• Design: teardrop holes for controlled flex and contact.
• Hardness: 20–95 durometer (Shore A).
• Materials: urethane, nitrile, neoprene (color-coded by durometer).
• Bearing mount series: DR-BPC (precision sealed), DR-B (standard), DR-BP (precision).

Available part options (examples)

• DR-9502-35UR-BPC — D=2.50 in, L=0.63 in, W=0.92 in, 1 bearing, 35 Shore A, Urethane, Yellow
• DR-9502-60UR-BPC — D=2.50 in, 60 Shore A, Urethane, Blue
• DR-9502-80UR-BPC — D=2.50 in, 80 Shore A, Urethane, Red
• DR-502-35UR-BPC — D=2.50 in, L=0.63 in, W=1.94 in, 2 bearings, 35 Shore A, Urethane, Yellow
• DR-9754-20W-BPC — D=4.00 in, 20 Shore A, Nitrile, White
• DR-9754-20-BPC — D=4.00 in, 20 Shore A, Neoprene, Black

Applications

• Conveyor and material handling rollers
• Packaging, sorting and accumulation systems
• Assembly lines and product transfer
• Areas requiring non‑marking, controlled contact

Documentation
Roller Material Information PDF available on request.
