Slip-on conveyor roller DR-EX

drivensteelnitrile rubber

Product overview

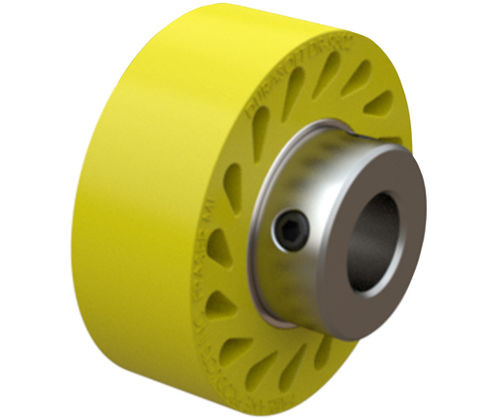

DuraSoft® DR-9502 series rollers are shaft-mounted rollers with a steel insert and an elastomer outer surface permanently bonded to the insert. They are designed for conveyor and material-handling applications requiring compliant contact and secure shaft attachment. Hub extends past the roller and is secured to the shaft with two setscrews positioned 90° apart.

Materials & hardness

• Available outer materials: urethane, nitrile, neoprene
• Hardness range: 20–95 Shore A (examples in table: 35, 60, 80)

Design & features

• Smooth contact surface permanently bonded to a steel insert for consistent performance
• Shaft-mounted hub extends beyond roller for easy mounting
• Hub supplied with two setscrews at 90° intervals to fasten onto shaft
• "Teardrop" holes in elastomer allow controlled flex for firm yet non-damaging contact

Available part options (table)
Header: ID | Part Number | D (in) | D1 (in) | D2 (in) | W (in) | W2 (in) | Durometer (Shore A) | Material | Color
112833 | DR-9502-35UR-EX500 | 2.50 | 1.25 | .501/.505 | .92 | .50 | 35 | Urethane | Yellow
112847 | DR-9502-35UR-EX625 | 2.50 | 1.25 | .626/.631 | .92 | .50 | 35 | Urethane | Yellow
112850 | DR-9502-35UR-EX750 | 2.50 | 1.25 | .751/.756 | .92 | .50 | 35 | Urethane | Yellow
113225 | DR-9502-35UR-EX10 | 2.50 | 1.37 | 1.001/1.006 | .92 | .50 | 35 | Urethane | Yellow
112880 | DR-9502-60UR-EX500 | 2.50 | 1.25 | .501/.505 | .92 | .50 | 60 | Urethane | Blue
112884 | DR-9502-60UR-EX625 | 2.50 | 1.25 | .626/.631 | .92 | .50 | 60 | Urethane | Blue
112895 | DR-9502-60UR-EX750 | 2.50 | 1.25 | .751/.756 | .92 | .50 | 60 | Urethane | Blue
112863 | DR-9502-60UR-EX10 | 2.50 | 1.37 | 1.001/1.006 | .92 | .50 | 60 | Urethane | Blue
112917 | DR-9502-80UR-EX500 | 2.50 | 1.25 | .501/.505 | .92 | .50 | 80 | Urethane | Red
112918 | DR-9502-80UR-EX625 | 2.50 | 1.25 | .626/.631 | .92 | .50 | 80 | Urethane | Red

Notes
Rollers listed are shaft-drive types with permanently bonded steel insert. Variants available in urethane (examples above), nitrile and neoprene. Table lists common diameters, widths, durometer and colors where provided.

Technical specifications

• Shaft-mounted roller with hub and two setscrews (90° apart)
• Steel insert permanently bonded to elastomer outer
• Outer materials: urethane, nitrile, neoprene
• Hardness range (Shore A): 20–95
• Typical overall diameter (D) in listed parts: 2.50 in
• Widths (W): 0.92 in; hub width (W2): 0.50 in
• Variant inner diameters (D1) shown: 1.25 in and 1.37 in
• Variant bore/insert dimensional ranges (D2) provided per part (examples: .501/.505, .626/.631, .751/.756, 1.001/1.006)
• Design feature: "teardrop" holes in elastomer for compliant contact
