Idler with bearings roller RR-Bx

for conveyornitrileneoprene®

Overview

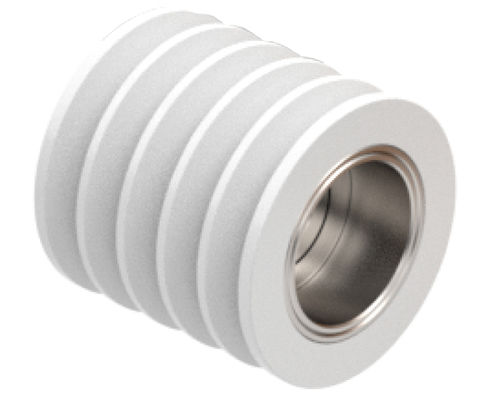

Finned rollers have grooves on the surface and are permanently bonded to a steel insert with the bearings held into place with snap rings. The grooves create less surface contact on the workpiece and allow dirt, debris and liquids to pass. Rollers are available in neoprene, nitrile and urethane materials with hardness ranging from 20 to 60 durometer. Supplied with standard bearings.

Product Types

• RR-B — Finned Rollers, Standard bearing
• RR-BP — Finned Rollers, Precision bearing
• RR-BPC — Finned Rollers, Precision sealed bearing

Part Options Table (columns: ID | SKU | Part Number | D in | D1 in | D2 in | W in | (Ref) W1 in | Bearing Type | No. of Bearings | No. of Fins | Durometer Shore A | Material | Color | PN)
111688 | RR-9250-2-20-B | RR-9250-2-20-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 20 | Neoprene | Black |
111704 | RR-9250-2-20W-B | RR-9250-2-20W-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 20 | Nitrile | White |
111723 | RR-9250-2-35-B | RR-9250-2-35-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 35 | Neoprene | Black |
111748 | RR-9250-2-35W-B | RR-9250-2-35W-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 35 | Nitrile | White |
111736 | RR-9250-2-35UR-B | RR-9250-2-35UR-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 35 | Urethane | Yellow |
111775 | RR-9250-2-60-B | RR-9250-2-60-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 60 | Neoprene | Black |
111805 | RR-9250-2-60W-B | RR-9250-2-60W-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 60 | Nitrile | White |
111784 | RR-9250-2-60UR-B | RR-9250-2-60UR-B | 2.00 | 1.252/1.256 | .500/.505 | .92 | 3/8 | B | 1 | 3 | 60 | Urethane | Blue |
112653 | RR-250-2-20-B | RR-250-2-20-B | 2.00 | 1.252/1.256 | .500/.505 | 1.94 | 3/4 | C | 1 | 6 | 20 | Neoprene | Black |
112660 | RR-250-2-20W-B | RR-250-2-20W-B | 2.00 | 1.252/1.256 | .500/.505 | 1.94 | 3/4 | C | 1 | 6 | 20 | Nitrile | White |

Media / Documents
A Roller Material Information PDF is available for this product (technical material information document).

Features / Technical specifications

• Grooved (finned) roller surface reduces contact area to help shed dirt, debris and liquids.
• Elastomer types available: Neoprene, Nitrile, Urethane.
• Durometer range: 20, 35, 60 (Shore A).
• Bonded to a steel insert; bearings retained with snap rings.
• Bearing mount type on this page: standard radial bearings (bearing type codes shown in table).
• Multiple overall diameters and widths available (example D = 2.00 in; W examples: .92 in and 1.94 in).
• Various part SKUs for different colors, materials and fin counts (see part options table for details).
