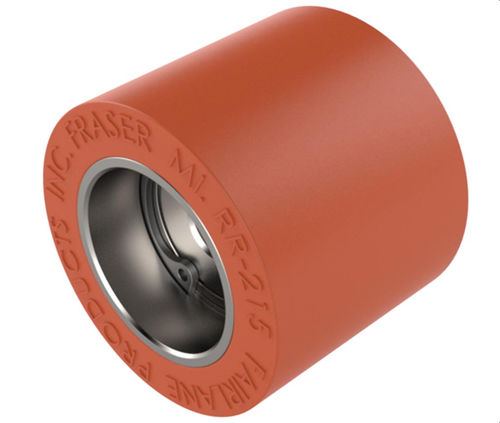

Steel conveyor roller RR-Bx

nitrileneoprene®urethane

Description
Solid rollers are single-piece industrial rollers with a steel insert permanently bonded to the outer material and radial bearings retained by snap rings. Designed for conveyors and material-handling equipment, they provide consistent outer diameter and are offered in multiple compounds and hardnesses. Supplied with standard bearings; precision and sealed-bearing options are available in other product types.

Product Types

• RR-Bx — Solid Rollers (Standard bearing)
• RR-BP — Solid Rollers (Precision bearing)
• RR-BPC — Solid Rollers (Precision sealed bearing)

Part Options (table)

• 111971 — RR-215-20W-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 20 — Material: Nitrile — Color: White
• 111958 — RR-215-20-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 20 — Material: Neoprene — Color: Black
• 112024 — RR-215-35W-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 35 — Material: Nitrile — Color: White
• 112005 — RR-215-35UR-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 35 — Material: Urethane — Color: Yellow
• 111981 — RR-215-35-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 35 — Material: Neoprene — Color: Black
• 112082 — RR-215-60W-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 60 — Material: Nitrile — Color: White
• 112065 — RR-215-60UR-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 60 — Material: Urethane — Color: Blue
• 112042 — RR-215-60-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 60 — Material: Neoprene — Color: Black
• 112182 — RR-215-80W-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 80 — Material: Nitrile — Color: White
• 112149 — RR-215-80UR-B — D: 1.50 in (38.10 mm) — D1: .877/.880 in (22.27/22.35 mm) — D2: .313/.317 in (7.95/8.05 mm) — W: 1.25 in (31.75 mm) — W1 (ref): 1/2 in (12.70 mm) — Bearing Type: A (Standard) — No. of Bearings: 1 — Durometer Shore A: 80 — Material: Urethane — Color: Red

Media & Documents
Roller material information (technical PDF available).

Features / Technical specifications

• Bearing mount: radial bearings retained with snap rings.
• Standard bearings supplied (precision and sealed-bearing variants available in other product types).
• Steel insert permanently bonded to roller material.
• Materials available: Neoprene, Nitrile, Urethane.
• Durometer (hardness) range: 20 to 95 Shore A (examples on this page: 20, 35, 60, 80).
• Typical outer diameter (D): 1.50 in (38.10 mm).
• Typical bore D1: .877/.880 in (22.27/22.35 mm); typical inner diameter D2: .313/.317 in (7.95/8.05 mm).
• Typical roller width (W): 1.25 in (31.75 mm); reference W1: 1/2 in (12.70 mm).
• Number of bearings per roller: 1.
• Available colors depend on material and durometer (examples: White, Black, Yellow, Blue, Red).
