Polymer conveyor roller DR-Rx

polyurethanenitrileneoprene®

Product description

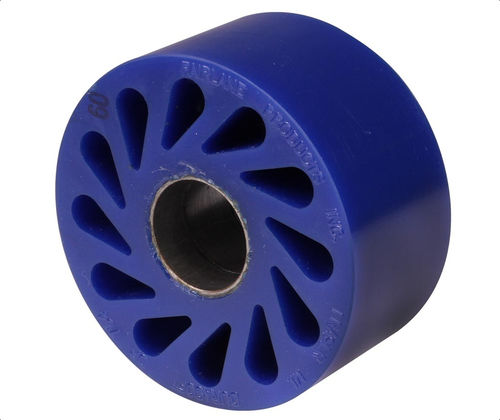

DuraSoft rollers feature a smooth polymer surface permanently bonded to a steel insert that provides rigidity and allows customizable mounting configurations. The rollers incorporate 'teardrop' holes that permit controlled flex for firm yet non-damaging contact. Materials available include urethane, neoprene and nitrile, with hardness from 20 to 95 Shore A.

Available materials & hardness

• Urethane: durometer options 35, 60, 80, 95 Shore A
• Neoprene: durometer 20 Shore A
• Nitrile: durometer 20 Shore A
• General hardness range: 20 to 95 Shore A

Part options (table)

• ID | SKU | Part Number | D (in) | D1 (in) | W (in) | Durometer (Shore A) | Material | Color
• 112661 | DR-9502-35UR-RP | DR-9502-35UR-RP | 2.50 | 1-1/8 (28.6 mm) | .92 | 35 | Urethane | Yellow
• 112672 | DR-9502-60UR-RP | DR-9502-60UR-RP | 2.50 | 1-1/8 (28.6 mm) | .92 | 60 | Urethane | Blue
• 112691 | DR-9502-80UR-RP | DR-9502-80UR-RP | 2.50 | 1-1/8 (28.6 mm) | .92 | 80 | Urethane | Red
• 112717 | DR-9502-95UR-RP | DR-9502-95UR-RP | 2.50 | 1-1/8 (28.6 mm) | .92 | 95 | Urethane | Orange
• 113811 | DR-502-35UR-RP | DR-502-35UR-RP | 2.50 | 1-1/8 (28.6 mm) | 1.94 | 35 | Urethane | Yellow
• 112510 | DR-502-60UR-RP | DR-502-60UR-RP | 2.50 | 1-1/8 (28.6 mm) | 1.94 | 60 | Urethane | Blue
• 112537 | DR-502-80UR-RP | DR-502-80UR-RP | 2.50 | 1-1/8 (28.6 mm) | 1.94 | 80 | Urethane | Red
• 112555 | DR-502-95UR-RP | DR-502-95UR-RP | 2.50 | 1-1/8 (28.6 mm) | 1.94 | 95 | Urethane | Orange
• 113795 | DR-9754-20-RP | DR-9754-20-RP | 4.00 | 1-1/8 (28.6 mm) | .92 | 20 | Neoprene | Black
• 113798 | DR-9754-20W-RP | DR-9754-20W-RP | 4.00 | 1-1/8 (28.6 mm) | .92 | 20 | Nitrile | White

Features / technical specifications

• Design: Roller only with permanently bonded steel insert for rigidity and customizable mounting.
• Flex feature: 'Teardrop' holes permit roller flex for firm yet non-damaging contact.
• Materials: Urethane, Neoprene, Nitrile.
• Hardness range: 20 to 95 Shore A.
• Common diameters (D): 2.50 in and 4.00 in for the listed parts.
• Inner diameter (D1): 1-1/8 in (28.6 mm) for the listed part options.
• Widths (W): typical values 0.92 in and 1.94 in depending on series.
• Color coding corresponds to durometer for quick identification (e.g., Yellow 35, Blue 60, Red 80, Orange 95; Black neoprene, White nitrile).
