Driven conveyor roller RR-EX

nitrileneoprene®polyurethane

Product overview

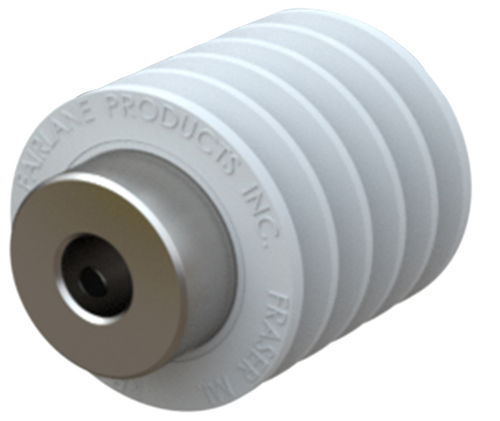

Finned rollers feature circumferential grooves permanently bonded to a steel insert and are designed for shaft mounting. A hub extends beyond the roller and is supplied with two setscrews spaced 90° apart to secure the roller on the shaft. The grooved profile reduces contact area with the workpiece and channels dirt, debris and liquids away from the contact surface. Rollers are offered in Neoprene, Nitrile and Urethane with hardness options from 20 to 60 Shore A.

Materials and options

• Materials: Neoprene, Nitrile, Urethane
• Hardness: Range noted on site 20 to 60 (Durometer, Shore A)
• Mounting: Shaft drive with hub and two setscrews (90° apart)
• Insert: Steel insert (permanently bonded)

Part options (table)
Header: ID | SKU | Part Number | D (in) | D1 (in) | D2 (in) | W (in) | W2 (in) | No. of Fins | Durometer (Shore A) | Material | Color
113338 | RR-9250-2-20-EX500 | RR-9250-2-20-EX500 | 2.00 | 1.25 | .501/.505 | .92 | .50 | 3 | 20 | Neoprene | Black
113356 | RR-9250-2-20W-EX500 | RR-9250-2-20W-EX500 | 2.00 | 1.25 | .501/.505 | .92 | .50 | 3 | 20 | Nitrile | White
113342 | RR-9250-2-20-EX625 | RR-9250-2-20-EX625 | 2.00 | 1.25 | .626/.631 | .92 | .50 | 3 | 20 | Neoprene | Black
113362 | RR-9250-2-20W-EX625 | RR-9250-2-20W-EX625 | 2.00 | 1.25 | .626/.631 | .92 | .50 | 3 | 20 | Nitrile | White
113345 | RR-9250-2-20-EX750 | RR-9250-2-20-EX750 | 2.00 | 1.25 | .751/.756 | .92 | .50 | 3 | 20 | Neoprene | Black
113364 | RR-9250-2-20W-EX750 | RR-9250-2-20W-EX750 | 2.00 | 1.25 | .751/.756 | .92 | .50 | 3 | 20 | Nitrile | White
113325 | RR-9250-2-20-EX10 | RR-9250-2-20-EX10 | 2.00 | 1.37 | 1.001/1.006 | .92 | .50 | 3 | 20 | Neoprene | Black
113349 | RR-9250-2-20W-EX10 | RR-9250-2-20W-EX10 | 2.00 | 1.37 | 1.001/1.006 | .92 | .50 | 3 | 20 | Nitrile | White
113398 | RR-9250-2-35-EX500 | RR-9250-2-35-EX500 | 2.00 | 1.25 | .501/.505 | .92 | .50 | 3 | 35 | Neoprene | Black
113516 | RR-9250-2-35W-EX500 | RR-9250-2-35W-EX500 | 2.00 | 1.25 | .501/.505 | .92 | .50 | 3 | 35 | Nitrile | White

Notes

• Grooved (finned) profile reduces surface contact and channels debris/liquids away from contact surface.
• Hardened steel insert bonded inside roller for shaft mounting.
• Hub supplied with two setscrews (90° apart) for shaft fastening.

Technical specifications

• Commercial designation: RR-EX
• Product type: Finned rollers (shaft drive)
• Insert: Steel insert, permanently bonded
• Mounting: Shaft drive; hub extends past roller; hub fastened by two setscrews 90° apart
• Materials available: Neoprene, Nitrile, Urethane
• Durometer (Shore A): Typical range shown on site 20 to 60 (individual parts list values shown: 20, 35, etc.)
• Typical nominal diameters (examples from parts): D = 2.00 in; D1 examples: 1.25 in, 1.37 in
• D2 (ID range examples): .501/.505, .626/.631, .751/.756, 1.001/1.006
• Widths (W): typical .92 in; W2 (hub width): typical .50 in
• Number of fins shown in table: 3 (for listed parts)
• Colors by material listed in parts: Black (Neoprene), White (Nitrile)
