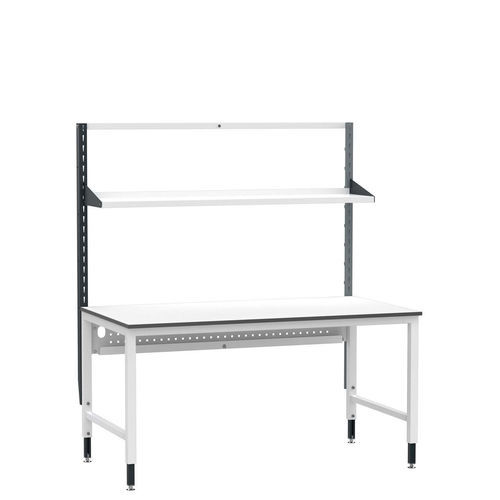

Assembling/disassembling workstation Nova Standard ESD

assemblymeasuringinspection

Overview
Nova Standard ESD Workstation is an industrial-grade workstation designed for ESD-protected environments. It provides manual height adjustment for ergonomic seated or standing use, integrated antistatic protection and a modular layout to accommodate a wide range of production and assembly accessories.

Construction and Durability

• Steel frame: H-shaped frame built from 40×40 mm profiles for high lateral stability.
• Load capacity: Supports up to 300 kg when load is evenly distributed.
• Height adjustment: Smooth manual adjustment from 680 to 1130 mm for ergonomic positioning.
• Fully supported worktop: Worktop supported across the frame for heavy-duty applications.
• Back panel: Structural stabilizer that also serves as a cable-management channel.

Materials and Antistatic Finish

• Frame and metal parts: Coated with an eco-friendly antistatic powder paint to ensure ESD continuity.
• Worktop: Laminated particleboard with a dissipative melamine surface; FSC-certified materials used.

Modular Flexibility (Accessories)

• Adjustable shelves: Tilt options 0°, 10°, 15°; each shelf rated up to 15 kg.
• Perforated back panels: For tool and consumable organization.
• LED lighting: Task lighting for precision assembly and inspection.
• IT accessories: Monitor mounts, keyboard trays, power strips and storage modules.

Eco-Friendly Packaging and Warranty

• Delivered disassembled in plastic-free, recyclable packaging to reduce waste.
• 5-year warranty on all metal parts.

Support and Customization

• Nova Standard can be configured with multiple accessories and customised dimensions to suit production lines, labs or repair stations.

Technical specifications

• Worktop lengths (mm): 1190, 1490, 1590, 1790, 1990.
• Worktop widths (mm): 690, 790, 890, 990.
• Worktop thickness: 25 mm.
• Adjustable height range: 680–1130 mm (manual).
• Load capacity: 300 kg (evenly distributed).
• Worktop material: Laminated particleboard with dissipative melamine surface; FSC-certified.
• Frame: H-shaped steel frame using 40×40 mm profiles; antistatic powder coating.
• Frame colours (RAL): Light Grey RAL7035, Anthracite Grey RAL7016 (or mixed).
• Optional accessories: Shelves, perforated back panels, LED lighting, IT solutions (monitor mounts, keyboard trays, power strips, storage).
• Warranty: 5 years on metal parts.
• Packaging: Disassembled, plastic-free eco-friendly packaging.
