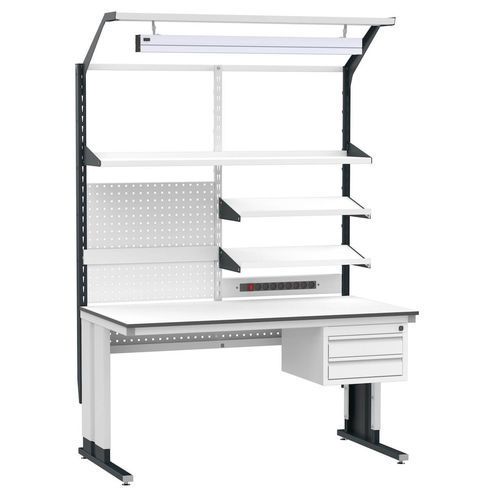

Laboratory workstation Summit Flex

assemblymodularmanual

Overview
The Summit Flex ESD workstation is a modular, professional ESD-protected workbench designed for EPA zones and sensitive-electronics handling. Manual height adjustment (705–1120 mm), C-frame construction and a broad set of integrated accessories make it suitable for electronics assembly, labs and R&D environments.

Key features

• ESD compliant to IEC 61340-5-1
• C-frame powder-coated conductive steel frame for safe charge dissipation
• Load capacity: up to 300 kg (evenly distributed)
• Manual height adjustment: 705–1120 mm via Allen key
• Rear panel with integrated cable management
• Anthracite lower legs to reduce visible soiling
• Leveling feet ±30 mm for stable installation

Included equipment

• Shelf: depth 300 mm (optional 400 mm), tilt 0°/10°/15°, capacity 15 kg
• Drawer module: lockable, standard 2 drawers (options 1 or 3), total capacity 40 kg
• Power strip: 7 sockets (Type E/F depending on configuration), main switch, surge protection
• LED lighting: micro-prismatic, up to 4778 lm, 5000 K, adjustable angle
• Perforated rear panel for tool organisation
• Bin rail: supports up to 10 kg for storage boxes

Technical data

• Worktop dimensions: 1190 × 690 mm
• Worktop thickness: 25 mm
• Material: FSC-certified particle board with ESD melamine surface
• Frame colours: RAL 7035 / RAL 7016
• Maximum load capacity: 300 kg (evenly distributed)
• Height adjustment: 705–1120 mm

Optional extensions

• Additional shelves, panels and drawer modules
• IT accessories (monitor & keyboard mounts)
• Extended lighting and power configurations

Sustainability & warranty

• Plastic-free, eco-friendly packaging
• 5 years warranty on all metal components

Model / technical specifications

• Model: Summit Flex
• Brand: FORISON
• ESD standard: IEC 61340-5-1
• Worktop: 1190 × 690 mm, 25 mm thick
• Height range: 705–1120 mm (manual)
• Load capacity: 300 kg
• Included: shelf, drawer module, power strip, LED lighting, perforated rear panel, bin rail
