Wooden workbench Nova Ultra ESD
assemblyfor workshopsindustrial

Wooden workbench - Nova Ultra ESD - Forison - assembly / for workshops / industrial
Wooden workbench - Nova Ultra ESD - Forison - assembly / for workshops / industrial
Add to favorites
Compare this product
Go to the Forison website for more information

Characteristics

Worktop material
wooden
Applications
for workshops, assembly, industrial, inspection, for disassembly, order picking
Other characteristics
with drawer, 2-drawer, 3-drawer, with shelves, modular, for heavy loads, height-adjustable, ESD, customizable, ergonomic, manual
Length

Max.: 1,990 mm
(78 in)

Min.: 1,190 mm
(47 in)

Width

Max.: 990 mm
(39 in)

Min.: 690 mm
(27 in)

Height

Max.: 1,130 mm
(44 in)

Min.: 680 mm
(27 in)

Load

300 kg
(661.4 lb)

Description

Overview

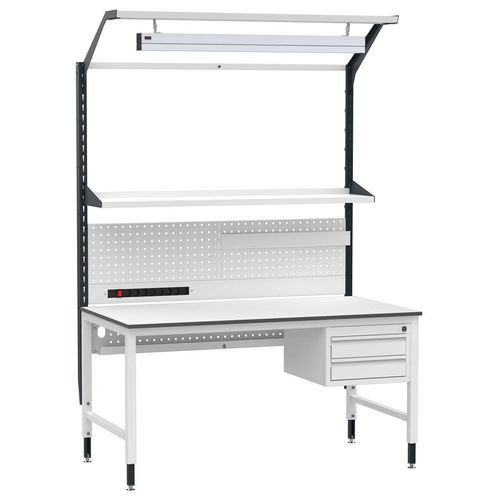

  • The Nova Ultra ESD Workstation is a fully equipped industrial workstation designed for ESD-protected areas, electronics assembly and precision tasks. The Ultra configuration includes an adjustable shelf, perforated back panel, lockable drawer module, container rail, power strip and LED lighting.


Construction and Durability
  • Steel frame: 40×40 mm H-frame profiles for structural stability and a uniform load capacity of up to 300 kg.
  • Fully supported worktop: Reinforced support around the frame for stable use under heavy or concentrated loads.
  • Perforated back panel: Reinforces the structure, supports tool organization and acts as a cable-management channel.


Height Adjustment and Stability
  • Height adjustment: Smooth manual range from 680 to 1130 mm for seated and standing work.
  • Leveling feet: Compensate floor irregularities up to 30 mm to maintain stability.
  • Anthracite leg finish: Practical finish that reduces visible soiling for a consistent professional appearance.


Materials and Finish
  • Antistatic powder coating on metal parts: Provides ESD protection and durable surface treatment.
  • FSC-certified worktop: 25 mm laminated particleboard with melamine surface, resistant to dirt and easy to clean.


Nova Ultra ESD Workstation Features
  • Adjustable shelf: Standard depth 300 mm (optional 400 mm); tilt angles 0°, 10°, 15°; load capacity 15 kg.
  • Power strip: 7 type-E outlets with main switch and surge protection.
  • LED lighting: Microprismatic diffuser, 5000 K, Ra >80, adjustable angle ±60°, 50,000 h lifetime.
    • Luminous flux: 3822 lm (1226 lx) for widths up to 1600 mm.
    • Luminous flux: 4778 lm (1533 lx) for widths from 1800 mm.
  • Perforated back panel: UE-compliant grid, height 300 mm.
  • Container rail: Load capacity 10 kg, compatible with hanging storage bins.
  • Lockable drawer module: Standard 2-drawer unit (optional 1 or 3); single drawer 336 × 491 × 91 mm; total drawer unit capacity 40 kg.


Modular Expansion
  • Fully customizable with additional accessories: extra back panels, drawers, shelves, LED lighting and IT accessories (monitor mounts, keyboard trays, additional power strips) to optimize workflow and organization.


Eco-Friendly Packaging and Warranty
  • Delivered in eco-friendly, plastic-free packaging.
  • 5-year warranty on all metal parts.


Technical Specifications
  • Worktop length: 1190 mm.
  • Worktop width: 690 mm.
  • Worktop thickness: 25 mm.
  • Height adjustment range: 680–1130 mm.
  • Load capacity (evenly distributed): 300 kg.
  • Worktop material: Laminated particleboard with melamine surface (FSC-certified).
  • Frame profiles: 40 × 40 mm steel H-frame.
  • Frame color (RAL): Light Grey (7035) / Anthracite Grey (7016).
  • Antistatic finish: Antistatic powder coating.
  • Included features: LED lighting (microprismatic, 5000 K, Ra >80, adjustable ±60°, 50,000 h), power strip (7 type‑E outlets, main switch, surge protection), adjustable shelf (300 mm standard; optional 400 mm; 0°/10°/15°; 15 kg), perforated back panel (300 mm), container rail (10 kg), lockable drawer module (drawer 336 × 491 × 91 mm; total 40 kg).
  • Leveling feet compensation: up to 30 mm.
  • LED luminous flux: 3822 lm (≤1600 mm) / 4778 lm (≥1800 mm).
  • Warranty: 5 years on metal parts.
  • Packaging: Eco-friendly, plastic-free.
