Industrial workstation Summit Infinite

ergonomicESDheight-adjustable

Overview

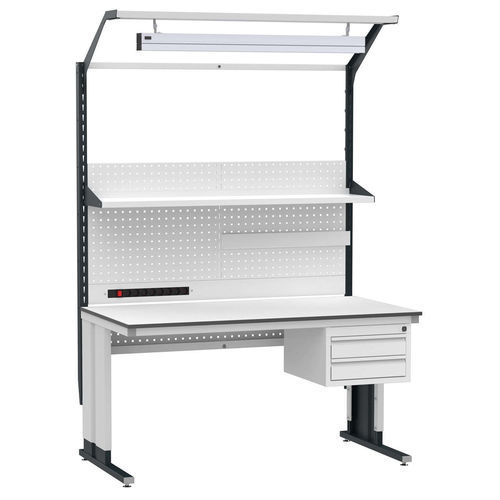

The Summit Infinite ESD Workstation is a C-foot style industrial workstation designed for electrostatic-sensitive environments. It provides manual height adjustment (705–1120 mm), a high static load capacity and integrated ESD-compliant features for assembly, testing and laboratory applications.

Robust design and stability

• Powder-coated steel C-foot frame engineered for even weight distribution and high stability.
• Perforated rear panel that reinforces the structure and serves as a cable management channel.
• Rated load capacity: up to 300 kg (evenly distributed).

Height adjustment and ergonomics

• Manual height adjustment range: 705–1120 mm using an Allen key system for controlled positioning.
• Anthracite-coloured legs reduce visible soiling; leveling feet compensate for uneven floors.
• Work height selectable for seated or standing operations to support ergonomic workflows.

Materials and durability

• Frame: powder-coated steel for wear resistance and corrosion protection.
• Worktop: FSC-certified particleboard, melamine-coated for a scratch-resistant, easy-to-clean surface.
• Worktop thickness: 25 mm.

Features and ESD protection
The workstation complies with IEC-61340-5-1 for safe dissipation of electrostatic charges. Key integrated features include:

• Adjustable shelf: available in 300 mm or 400 mm depth; tilt positions 0°, 10°, 15°; shelf load capacity 15 kg.
• Power strip: 7 × Type E sockets with surge protection and a main switch.
• LED lighting: microprismatic diffuser, 5000 K; 3822 lm for tables up to 1600 mm, 4778 lm for larger widths.
• Perforated back panel: organized mounting for tools and accessories.
• Container rail: supports hanging storage bins up to 10 kg.
• Locking drawer module: two drawers with combined load 40 kg; drawer dimensions 336 × 491 × 91 mm.

Expandability and accessories

• Modular options: additional shelves, perforated panels, drawer modules and upgraded lighting or power strip variants.
• IT accessories available: monitor mounts, keyboard supports and cable routing solutions.

Sustainability & warranty

• Delivered in eco-friendly, plastic-reduced packaging.
• Warranty: 5 years on all metal components.

Technical specifications

• Model: Summit Infinite
• Length (example): 1190 mm
• Worktop dimensions (example): 1190 × 690 mm
• Worktop thickness: 25 mm
• Worktop material: Melamine-coated FSC-certified particleboard
• Frame material: Powder-coated steel
• Frame colours (RAL): 7035 / 7016
• Height adjustment: 705–1120 mm (manual)
• Maximum load capacity: 300 kg
• Included features: shelf (300/400 mm depth), perforated back panel, power strip (7 × Type E, surge-protected, main switch), LED lighting (5000 K; 3822 lm ≤1600 mm, 4778 lm >1600 mm), container rail (10 kg), locking drawer module (2 drawers, combined 40 kg; 336 × 491 × 91 mm)
• ESD compliance: IEC-61340-5-1
• Shelf tilt angles: 0°, 10°, 15°
• Warranty: 5 years on metal components
