Assembly workstation Summit Max

for laboratoryergonomictilting

Overview

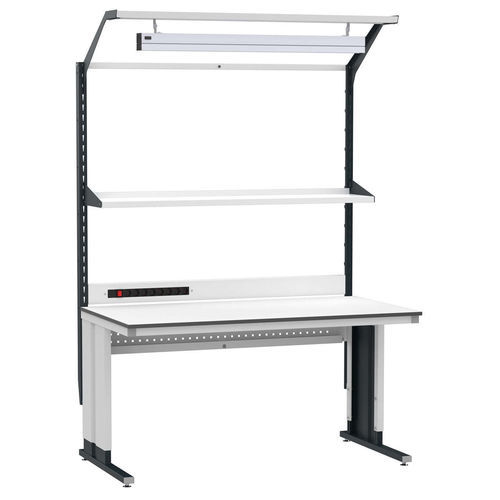

The Summit Max ESD Workstation is a manually height‑adjustable, ESD‑compliant workstation engineered for professional electronics, laboratory and assembly environments. Its C‑foot frame, integrated storage shelf, built‑in power strip and LED lighting deliver a configurable, safe and ergonomic workstation.

Durable construction and load capacity

• Steel frame design with eco‑friendly powder coating for long service life and wear resistance.
• Reinforced rear panel improves rigidity and serves as a cable management channel to keep wiring organized.
• Rated load capacity up to 300 kg with evenly distributed load for heavy equipment and tools.

Ergonomic height adjustment

• Manual height adjustment range 705–1120 mm to support seated and standing workflows.
• Leveling feet with ±30 mm adjustment ensure stability on uneven floors.

Premium materials and ESD compliance

• Worktop: 25 mm melamine‑coated particleboard (FSC certified) offering easy cleaning and ESD protection.
• Frame finish: environmentally friendly powder coat for durable, low‑maintenance surfaces.
• Compliant with IEC‑61340‑5‑1 for electrostatic discharge control in sensitive environments.

Integrated features

• Adjustable shelf: available depths 300 mm or 400 mm with tilt options 0°, 10° and 15°; shelf capacity up to 15 kg.
• Power strip: integrated unit with 7 Type E sockets, main switch and surge protection for tool and instrument power.
• LED lighting: adjustable angle fixtures with microprismatic diffusers; nominal color temperature 5000 K and luminous output 3822–4778 lm for task illumination.

Modular expansion and accessories

• Optional back panels, drawer modules and additional shelves to extend storage and organization.
• IT accessories available: monitor mounts, keyboard trays and cable routing solutions to optimize the workstation layout.

Packaging and warranty

• Packaged using sustainable materials to reduce environmental impact during transport and storage.
• 5‑year warranty on all metal components for long‑term reliability.

Technical specifications

• Model: Summit Max ESD Workstation
• Length / Worktop example: 1190 mm
• Worktop dimensions (example): 1190 x 690 mm
• Worktop thickness: 25 mm (melamine‑coated particleboard, FSC certified)
• Height adjustment: 705 – 1120 mm (manual)
• Leveling feet adjustment range: 30 mm
• Load capacity: 300 kg (evenly distributed)
• Adjustable shelf: depths 300 / 400 mm; tilt 0° / 10° / 15°; capacity up to 15 kg
• Power strip: 7 x Type E sockets, main switch, surge protection
• LED lighting: 5000 K, 3822–4778 lm, microprismatic diffusers
• Frame finish: eco‑friendly powder coat (RAL 7035 / RAL 7016 options)
• Standards: IEC‑61340‑5‑1 (ESD)
• Warranty: 5 years on metal components
