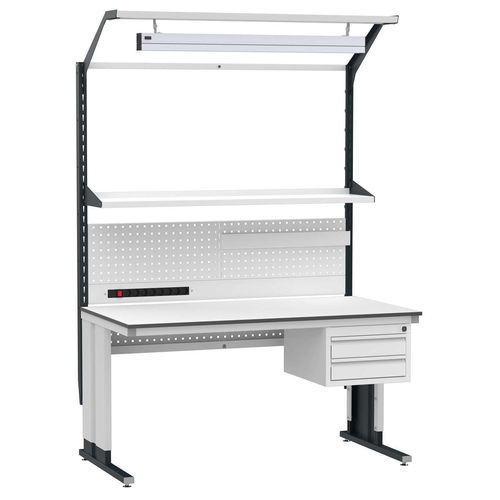

Laboratory workstation Summit Ultra

for clean roomsindustrialassembly

Overview
The Summit Ultra ESD Workstation is a modular, manually height-adjustable ESD-protected workstation designed for ESD-sensitive production, laboratories and clean assembly areas. It combines cable management, configurable storage and an electrostatic-safe finish to support efficient, repeatable workflows.

Durability & Load Capacity
The steel frame with a reinforced rear panel provides structural stability and integrated cable routing. The workstation supports an evenly distributed load of up to 300 kg.

Ergonomic Height Adjustability
Manual height adjustment ranges from 705 to 1120 mm and is operated with an Allen key. Leveling feet (±30 mm) ensure stability on uneven floors. The C-foot frame improves operator access and posture.

Materials & Finish
The steel frame is finished with an eco-friendly antistatic powder coating. The worktop is a 25 mm melamine-coated particleboard (FSC certified) providing scratch resistance and easy cleaning.

Comprehensive Features & Accessories

• Adjustable shelves: depths 300 mm or 400 mm; tilt options 0°, 10°, 15°; 15 kg per shelf.
• Perforated back panel for tool organization and accessory hooks.
• Container rail for visible storage bins (10 kg capacity).
• Lockable drawer module: available with 1, 2 or 3 drawers; total capacity up to 40 kg.
• Integrated power strip: 7 × Type E sockets, surge protection and main switch.
• LED lighting: microprismatic diffuser, adjustable angle, ~50,000 h lifespan; luminous output ~3822 lm (≤1600 mm) / ~4778 lm (larger).

Modularity & Customization
Modular expansion options include additional shelves and panels, IT accessories (monitor and keyboard mounts) and advanced lighting or power modules. Custom configurations and specific accessories are available on request.

Sustainability & Warranty
Delivered in eco-friendly, plastic-free packaging. The workstation includes a 5-year warranty on all metal components.

Technical specifications

• Model: Summit Ultra
• Worktop example dimensions: 1190 × 690 mm (other sizes available)
• Worktop thickness: 25 mm
• Worktop material: Melamine-coated particleboard (FSC certified)
• Height adjustment: 705 – 1120 mm (manual)
• Load capacity (evenly distributed): 300 kg
• Frame material & finish: Steel with eco-friendly antistatic powder coating
• Frame colours (RAL): 7035 / 7016
• Shelves: depths 300 mm or 400 mm; tilt 0°/10°/15°; 15 kg/shelf
• Power strip: 7 × Type E sockets, surge protection, main switch
• LED lighting: microprismatic diffuser; ~3822 lm (≤1600 mm) / ~4778 lm (larger); ~50,000 h
• Perforated back panel: yes
• Container rail capacity: 10 kg
• Drawer module capacity (1–3 drawers): up to 40 kg total
• Leveling feet: ±30 mm
• Warranty: 5 years on metal components
• Typical delivery lead time: 2–3 weeks
