Wooden workbench Nova Flex ESD
assemblyfor workshopsindustrial

Wooden workbench - Nova Flex ESD - Forison - assembly / for workshops / industrial
Wooden workbench - Nova Flex ESD - Forison - assembly / for workshops / industrial
Add to favorites
Compare this product
Go to the Forison website for more information

Characteristics

Worktop material
wooden
Applications
for workshops, assembly, industrial, inspection, for disassembly, order picking
Other characteristics
2-drawer, with drawer, with shelves, modular, with tool board, disassemblable, height-adjustable, ESD, customizable, ergonomic, manual
Length

Min.: 1,190 mm
(47 in)

Max.: 1,990 mm
(78 in)

Width

Min.: 690 mm
(27 in)

Max.: 990 mm
(39 in)

Height

Min.: 680 mm
(27 in)

Max.: 1,130 mm
(44 in)

Load

300 kg
(661.4 lb)

Description

Overview

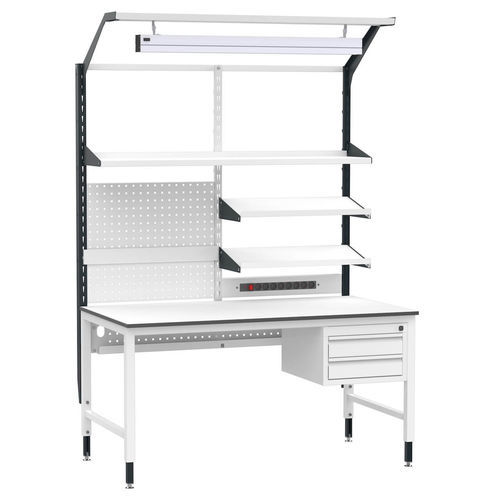

  • Nova Flex ESD is a complete ergonomically designed workstation for ESD-protected areas, electronics assembly and laboratories, combining stable steel H-frame construction with ESD-safe surfaces and modular accessories.


Construction and ESD protection
  • ESD-dissipative worktop compliant with IEC 61340-5-1 to protect sensitive components from electrostatic discharge.
  • 40×40 mm steel H-frame with powder-coated finish and rated load capacity up to 300 kg (evenly distributed).
  • Manual height adjustment range 680–1130 mm to support seated and standing work.
  • Adjustable leveling feet to compensate uneven floors up to 30 mm.


Standard equipment
  • Shelves: one full-length and two half-length shelves, standard depth 300 mm (optional 400 mm), adjustable tilt 0°/10°/15°, 15 kg per shelf.
  • Power strip: half-length with 7 Type E sockets, main switch and surge protection; ESD version available.
  • LED lighting: micro-prismatic, 5000 K; luminous flux approx. 3822 lm for widths up to 1600 mm or 4778 lm for wider models.
  • Lockable drawer module: standard 2 drawers (options 1 or 3), drawer dimensions 336×491×91 mm; total drawer load 40 kg.
  • Perforated rear panel: EU grid format, height 300 mm for tool and accessory organization.
  • Container rail: half-length, 10 kg load capacity for hanging storage bins.


Materials and finish
  • Worktop: 25 mm laminated particleboard with conductive melamine surface, ESD-dissipative, durable and easy to clean.
  • Frame: powder-coated steel, corrosion-resistant. Available finishes: RAL 7035 light grey, RAL 7016 anthracite or MIX 7035/7016.


Dimensions and variants
  • Length options: 1200 / 1500 / 1600 / 1800 / 2000 mm.
  • Width options: 700 / 800 / 900 / 1000 mm.
  • Worktop thickness: 25 mm.
  • Height adjustment: 680–1130 mm.
  • Rated load capacity: 300 kg.


Applications
  • Suitable for electronics assembly, laboratories, repair and R&D environments where ESD protection and ergonomic, modular workspace are required.


Packaging and warranty
  • Delivered disassembled in sustainable, plastic-free packaging.
  • 5-year warranty on metal components.
  • Lead time typically 2–3 weeks depending on configuration; global shipping available; custom configurations on request.


Technical characteristics / specifications
  • ESD standard: IEC 61340-5-1 for dissipative worktop.
  • Frame: 40×40 mm H-frame, powder-coated steel.
  • Height adjustment: manual 680–1130 mm.
  • Worktop: 25 mm laminated particleboard with conductive melamine.
  • Load capacity: 300 kg (evenly distributed).
  • Shelves: depth 300 mm (optional 400 mm), 15 kg per shelf, tilt 0°/10°/15°.
  • Drawer module: 336×491×91 mm, total load 40 kg, lockable, available 1/2/3 drawers.
  • Power strip: 7 × Type E sockets, main switch and surge protection (ESD option available).
  • LED lighting: 5000 K, 3822 lm (≤1600 mm) / 4778 lm (≥1800 mm).
  • Perforated rear panel: EU grid, height 300 mm.
  • Container rail: half-length, 10 kg capacity.
  • Adjustable feet: compensation up to 30 mm.
