Assembly workstation Nova Edge
for laboratoryindustrialmodular

Assembly workstation - Nova Edge - Forison - for laboratory / industrial / modular
Assembly workstation - Nova Edge - Forison - for laboratory / industrial / modular
Add to favorites
Compare this product
Go to the Forison website for more information

Characteristics

Applications
industrial, assembly, for laboratory
Other characteristics
modular, manual, ESD

Description

Overview

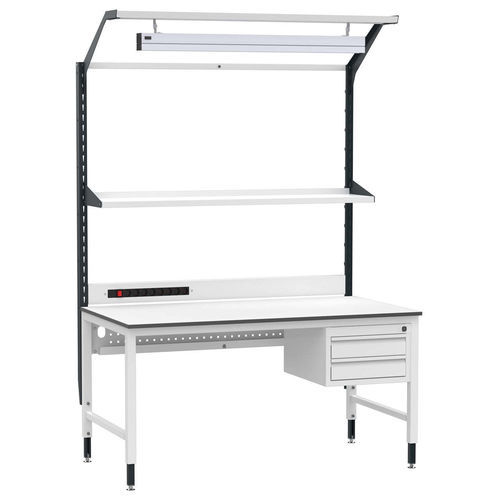

  • The Nova Edge ESD workstation is a modular industrial bench designed to protect sensitive assemblies from electrostatic discharge while providing ergonomic manual height adjustment and integrated accessories for production and laboratory environments.


Robust construction and functionality
  • Steel frame 40×40 mm (H-frame) for high rigidity and even load distribution up to 300 kg.
  • Fully supported worktop with integrated rear plate serving as a cable management channel.


Height adjustment and stability
  • Manual height adjustment from 680 to 1130 mm via Allen screw, enabling seated or standing work positions.
  • Adjustable feet for floor irregularities up to 30 mm; H-frame ensures lateral stability.
  • Anthracite-finish legs to minimise visible dirt in industrial settings.


Materials and finish
  • ESD powder-coated steel frame for durable antistatic performance.
  • FSC-certified particleboard worktop with dissipative melamine surface, wear-resistant and easy to clean.


Included features
  • Adjustable shelf: depth 300 mm (optional 400 mm), tilt 0°/10°/15°, capacity 15 kg.
  • Power strip: 7 Type E sockets with main switch and surge protection.
  • Microprismatic LED lighting: 5000 K, Ra >80, adjustable ±60°, lifetime ~50,000 h; luminous flux 3822 lm (≤1600 mm) or 4778 lm (≥1800 mm).
  • Lockable drawer unit: standard 2 drawers (options 1 or 3), total capacity 40 kg; drawer dimensions 336×491×91 mm (W×D×H).


Flexibility and accessories
  • Options: additional shelves, perforated rear panels, extra drawer modules and IT accessories (monitor mounts, keyboard trays).
  • Modular configuration supports rapid reconfiguration for production lines or lab benches.


Packaging and warranty
  • Delivered in plastic-free packaging.
  • 5-year warranty on all metal components.


Technical specifications
  • Worktop length: 1190 mm (base example).
  • Worktop width: 690 mm.
  • Worktop thickness: 25 mm.
  • Height adjustment range: 680–1130 mm (manual).
  • Load capacity: 300 kg (evenly distributed).
  • Frame: steel 40×40 mm, powder coated (RAL7035 / RAL7016 / mixed).
  • Shelf: 300 mm depth (option 400 mm), tilt 0°/10°/15°, 15 kg capacity.
  • Power strip: 7× Type E, main switch, surge protection.
  • LED: 5000 K, Ra >80, ±60° adjustment, 50,000 h; luminous flux 3822 lm / 4778 lm.
  • Drawer unit: options 1/2/3 drawers, total 40 kg, drawer 336×491×91 mm.
  • Feet adjustment: compensation up to 30 mm.
