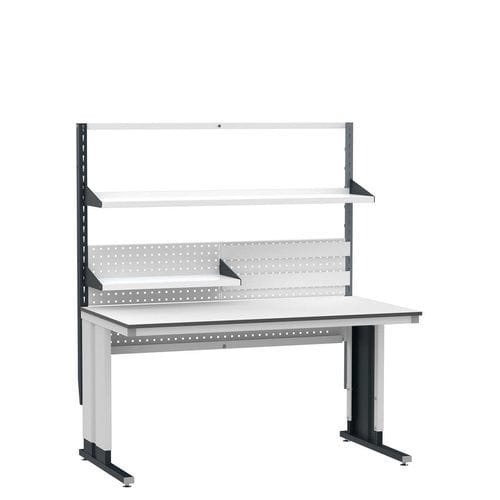

Wooden workbench Summit Prime ESD

assemblyfor workshopsindustrial

Overview
The Summit Prime ESD workstation is designed for professional ESD-protected environments and EPA zones. It offers manual height adjustment and a standard configuration including shelving, a perforated rear panel, a bin rail, integrated power strip and microprismatic LED lighting suitable for assembly and inspection tasks.

Durable construction and high load capacity

• C‑leg steel frame for excellent stability.
• Total load capacity up to 300 kg with even weight distribution.
• Rear panel improves structural rigidity and provides a cable management channel.

Adjustable height for ergonomics

• Manual height adjustment range: 705–1120 mm, adjusted with an Allen key.
• Lower legs in anthracite to reduce visible soiling; leveling screws for stability on uneven floors.

Eco-friendly materials and anti-static properties

• Frame and metal parts finished with an environmentally friendly anti-static powder coating.
• Worktop: FSC-certified particleboard with melamine surface and ESD properties compliant with IEC-61340-5-1.

Included features

• Height-adjustable workstation 705–1120 mm; load capacity up to 300 kg.
• Shelves: one full-length and one half-length (300 mm depth; optional 400 mm). Adjustable tilt 0° / 10° / 15°; 15 kg per shelf.
• Perforated rear panel: EU mesh format, 300 mm high for accessory mounting.
• Bin rail for hanging storage boxes, load capacity 10 kg.
• Power strip: 7 × Type E sockets with master switch and surge protection.
• LED lighting: microprismatic, 5000 K, Ra > 80, 50,000 h life; 3822 lm / 1226 lx (≤1600 mm) or 4778 lm / 1533 lx (>1800 mm).

Flexible modular design

• Expandable with optional shelves, perforated panels, drawers, power strips and IT accessories (monitor and keyboard mounts).
• All components meet IEC-61340-5-1 for ESD protection in EPA zones.

Eco-friendly packaging and warranty

• Delivered in sustainable, plastic-free packaging.
• 5-year warranty on all metal parts.

Technical specifications

• Series / Model: Summit Prime
• Load capacity: 300 kg (evenly distributed)
• Height adjustment: 705–1120 mm (manual, Allen key)
• Standard worktop dimensions (example): 1190 × 690 mm
• Worktop thickness: 25 mm
• Worktop material: Melamine-coated FSC-certified particleboard (ESD)
• Shelf depth: 300 mm (optional 400 mm)
• Shelf load capacity: 15 kg per shelf
• Perforated rear panel height: 300 mm (EU mesh format)
• Bin rail load capacity: 10 kg
• Power strip: 7 × Type E sockets, master switch, surge protection
• LED lighting: 5000 K, Ra > 80, 50,000 h; 3822 lm / 1226 lx (≤1600 mm) or 4778 lm / 1533 lx (>1800 mm)
• Frame colors (RAL): 7035 / 7016
• Frame type: C‑leg with rear cable management panel
• Standards: IEC-61340-5-1 compliant (ESD)
