Multigas analyzer GA220

tetrachloroethyleneC-pentanemonitoring

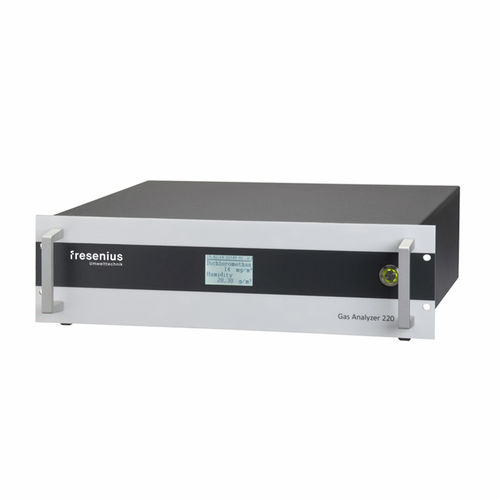

The GA220 is a multi gas analyzer for continuous online measurement of up to 6 process gases, with up to 8 sample gas inlets for several measuring points. It combines infrared, electrochemical and zirconia sensors in one 19-inch unit, so oxygen (O2), hydrogen sulfide (H2S) and hydrogen (H2) are measured together with IR-active gases such as perchloroethylene, the refrigerants R11 and R12 or cyclopentane. Mutual interference between the gases is compensated.
Typical applications:

• Chemical industry: monitoring reaction and process gases
• Recycling: solvents and refrigerants
• Pharmaceutical production
• Environmental technology and safety monitoring
• Multi-stream monitoring where several sample points share one analyzer

What operators get:

• One process gas analyzer instead of several single gas devices
• Up to 8 sample gas inlets for multiple measuring points
• Patented NDIR method with reference pressure measurement, cuvette heated to 50 °C, pressure compensation
• RS232 as standard; Profibus DP, Modbus TCP, EtherNet/IP, Profinet and up to 8 isolated 4–20 mA outputs as options
• Optional sample gas filter and pressure regulator for inlet pressures up to 100 bar

Technical data (excerpt):

• Gas components: up to 6 process gases from NDIR (perchloroethylene, R11, R12, cyclopentane), EC (O2, H2S, H2) and ZrO2 (O2); others on request
• Measuring ranges and detection limits: depending on substance
• Sample gas inlets: 1, expandable to 8
• Gas path: internal pump 4 l/min, PTFE or stainless steel
• Readiness: depending on substance, full specification after 30 min
• Housing: 19-inch rack, 400 mm deep, IP20, 13 kg
• Power: 230 V AC / 50 Hz, optionally 115 V AC / 60 Hz

Full specifications: data sheet (as of 20.05.2025) under Catalogs.
