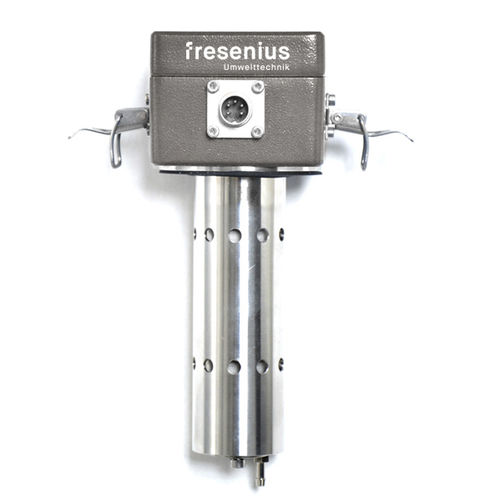

Solvent analyzer TINA

gasmonitoringconcentration

The TINA (Toxical Inline Analyzer) is an inline LEL monitor for threshold monitoring of toxic and explosive gas mixtures directly in the process. It measures in situ by diffusion, so no sample extraction and no external gas conditioning are needed.
Typical applications:

• Monitoring the lower explosive limit (LEL) of solvent-laden process gases
• Solvent monitoring in coating and painting lines
• Chemical industry
• Other industrial processes where a concentration threshold must not be exceeded

What operators get:

• Fast response: T50 below 5 s, T90 below 10 s
• NDIR photometer with reference detector and automatic zero correction for long-term stable readings
• Rugged design: die-cast aluminum housing, stainless steel measuring chamber, IP67
• Warm-up of 5 minutes, full specification after 30 minutes
• No sampling line, pump or gas conditioning to maintain, because the analyzer sits in the gas stream
• An inline gas analyzer for operating temperatures from 0 to 70 °C

Technical data (excerpt):

• Measuring range: up to 100 % LEL of various gases and gas mixtures, e.g. methane and hydrocarbon solvents
• Measuring principle: diffusion, NDIR photometer with reference detector
• Accuracy: < 2 % of reading, < 1 % of full scale
• Response time: T50 < 5 s, T90 < 10 s
• Operating conditions: 0–70 °C, free of condensation
• Pressure range: 0.9–1.1 bar
• Housing: die-cast aluminum, IP67

Full specifications: TINA product page on freseniusinstruments.com.
