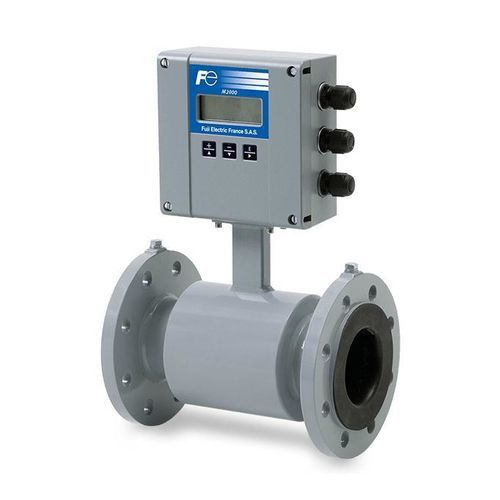

Electromagnetic flow meter M2000

volumefor waterfor wastewater

M2000 ELECTROMAGNETIC FLOWMETER: RELIABLE FLOW MEASUREMENT FOR INDUSTRIAL LIQUIDS
A PRECISE AND VERSATILE SOLUTION TO IMPROVE YOUR PROCESSES

The Fuji Electric M2000 electromagnetic flowmeter is designed for bidirectional flow measurement of conductive liquids in a wide range of industrial environments. Accurate, robust, and easy to operate, it provides clear monitoring of flow rate, totalization, and alarms through its backlit LCD display.

M2000 ELECTROMAGNETIC FLOWMETER FEATURES

• Bidirectional flow measurement for conductive liquids above 5 μS/cm
• Accuracy up to ±0.2% of measured flow
• Measuring range from 0.03 to 12 m/s
• Nominal diameters from DN 6 to DN 2000
• IP67 protection rating
• 4-line backlit LCD display
• 0/4-20 mA analog output and programmable logic outputs
• Communication interfaces available: Modbus RTU, HART, M-Bus, and Profibus-DP
• Integrated data logging function
• Empty pipe detection for safer operation

APPLICATIONS

The M2000 is especially well suited for demanding industrial applications, particularly in water and wastewater treatment, as well as conductive liquid measurement in industrial processes.

ADVANTAGES

• High measurement accuracy for better process control
• Suitable for a wide variety of measuring tubes and applications
• Clear simultaneous display of flow, totalization, and alarms
• Easy integration into existing systems thanks to multiple interfaces
• Continuous diagnostics through internal self-test functions
• Rugged construction for harsh industrial environments
