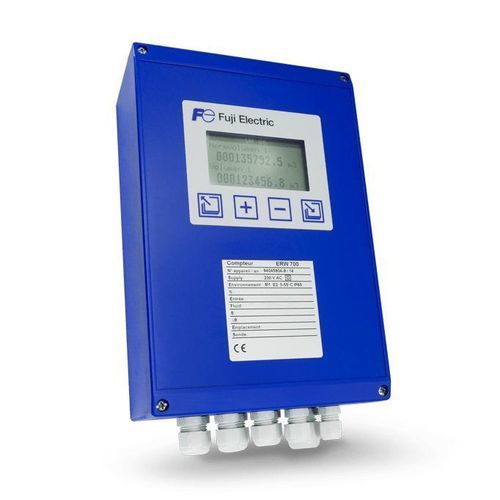

Gas flow computer ERW700

for liquidsfor waterfor steam

ERW700 THERMAL ENERGY AND FLOW COMPUTER
CONTROL YOUR FLOW MEASUREMENT AND ENERGY METERING WITH PRECISION

The ERW700 flow and thermal energy computer measures and calculates in real time the flow of liquids, gases, water and steam, as well as thermal energy consumption. It integrates into industrial installations for energy monitoring, heat billing and performance optimization.

CHARACTERISTICS ERW700 THERMAL ENERGY AND FLOW COMPUTER

• Calculation of volumetric flow, corrected flow, mass flow and heating/cooling power
• Compatible with liquids, gases, steam and water
• 0/4-20 mA current, frequency, pulse and Pt100/500/1000 temperature inputs
• 0/4-20 mA current, pulse, MBus and Modbus outputs
• 24-bit analog-to-digital converters
• Calculation speed up to 10 measurements per second
• Robust housing with IP65 protection
• Wall mounting with LCD display or remote display

APPLICATIONS
The ERW700 is designed for thermal energy metering, heat quantity billing, monitoring of heating and cooling production installations, and industrial processes requiring accurate and repeatable measurements.

• ADVANTAGES
• High accuracy for calculating flow, density, enthalpy and compressibility
• Flexible integration with differential pressure, vortex, ultrasonic or Coriolis flowmeters
• Easy reading with backlit graphic display
• Advanced data storage and acquisition functions
• Simple configuration via PC software or front-panel keypad
• Enhanced security with surge protection and password access
• Suitable for industrial energy management and optimization
