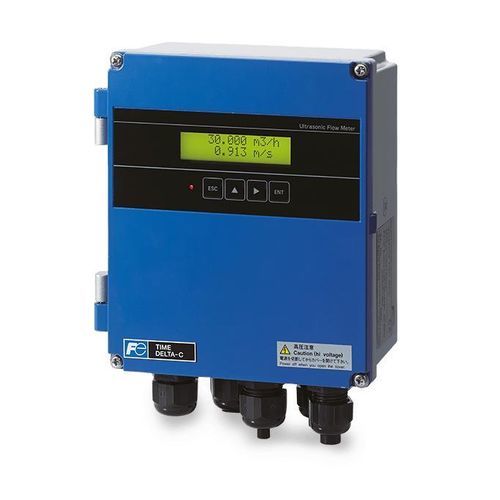

Ultrasonic transit-time flow meter DELTA-C FSV

volumefor waterfor wastewater

FIXED ULTRASONIC FLOWMETER TIME DELTA-C – CONVERTER – FSV IP66
NON-INTRUSIVE FLOW MEASUREMENT TO IMPROVE INDUSTRIAL PROCESS RELIABILITY

The fixed ultrasonic flowmeter Time Delta-C – Converter – FSV IP66 is a high-performance solution for liquid flow measurement in industrial environments. Thanks to its non-intrusive transit-time technology, it can be installed quickly on existing pipes without cutting the line, while ensuring reliable and accurate measurement.

FEATURES FIXED ULTRASONIC FLOWMETER TIME DELTA-C – CONVERTER – FSV IP66

• Ultrasonic measurement based on transit-time difference
• Fixed version, single measurement channel
• Aluminum alloy converter housing with IP66 protection
• Measurement accuracy up to ±1.0 % depending on flow conditions
• Fluid temperature up to 200 °C depending on the sensor
• 4-20 mA analog output, contact outputs, and pulse output
• Optional RS-485 Modbus communication
• Power supply from 100 to 240 V AC or 20 to 30 V DC
• Wall or pipe mounting
• Suitable for a wide range of pipe diameters and materials depending on the associated sensor

APPLICATIONS
This flowmeter is suitable for liquid measurement in many industrial applications, including service water, wastewater, industrial water, seawater, pure water, irrigation, oil, as well as energy management and process monitoring installations.

ADVANTAGES

• Non-intrusive installation without drilling or process shutdown
• No pressure loss
• No contact with the fluid
• Reduced risk of leaks and contamination
• Fast and simple commissioning
• Low maintenance thanks to the absence of parts in contact with the liquid
• Strong resistance to air bubbles
• Reliable measurement for process control and energy performance optimization
