Electromagnetic flow meter M5000

volumefor waterDN15 - 1/2"

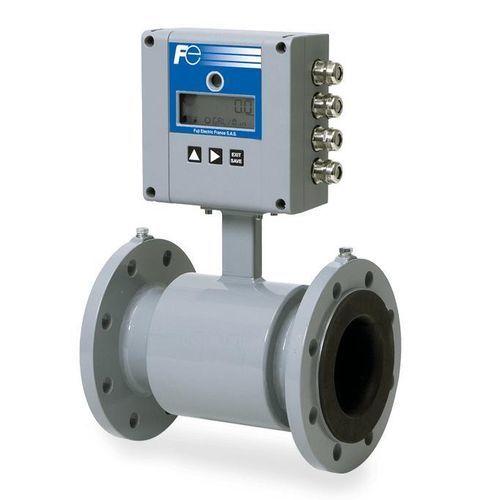

M5000 SELF-POWERED ELECTROMAGNETIC FLOWMETER
HIGH-PRECISION FLOW MEASUREMENT FOR WATER NETWORKS WITHOUT EXTERNAL POWER SUPPLY

The M5000 self-powered electromagnetic flowmeter is designed for accurate and reliable measurement of conductive fluids, especially in water industry applications. Battery powered and built for demanding environments, it delivers efficient monitoring of flow rate and consumption, even on remote or hard-to-access sites.

FEATURES OF THE M5000 SELF-POWERED ELECTROMAGNETIC FLOWMETER

• Self-powered by internal 3.6 V lithium batteries
• Battery life up to 6 years, extendable to 12 years as an option
• High-accuracy measurement, including at low flow rates
• Available sizes from DN 15 to DN 600
• Measuring range from 0.03 to 12 m/s
• Repeatability of 0.1%
• 2-line LCD display with front-panel programming
• IP67 protection, IP68 available as an option
• RS232, Modbus RTU and infrared communication
• Integrated data logging function
• Suitable for harsh environments, including buried or submerged installation depending on configuration

APPLICATIONS
The M5000 is ideal for leak detection, water consumption monitoring, irrigation network management, drinking water network control, and installations located on remote or constrained sites.

ADVANTAGES

• Low investment cost
• Lower cost compared with conventional recording systems
• No on-site wiring required
• Remote data access through suitable communication solutions
• Ideal for difficult-to-access locations
• High installation flexibility
• Fast commissioning
• Easy maintenance
• No moving parts for improved durability
