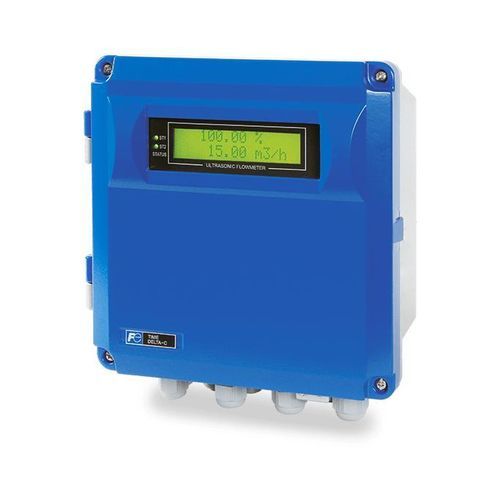

Ultrasonic transit-time flow meter DELTA-C FSV-L-1

volumefor liquidsfor water

FIXED ULTRASONIC FLOWMETER TIME DELTA-C EXTENDED 2 MEASUREMENT CHANNELS – FSV-L CONVERTER
HIGH-PRECISION FIXED MEASUREMENT FOR MONITORING TWO LINES OR OPTIMIZING ENERGY PERFORMANCE

The FSV-L converter for the fixed Time Delta-C extended ultrasonic flowmeter is designed for reliable measurement of homogeneous liquids in demanding industrial environments. Thanks to its transit-time difference technology, it provides high-performance fixed installation without major pipework modifications, while delivering excellent accuracy and flexible configuration.

FEATURES FIXED ULTRASONIC FLOWMETER TIME DELTA-C EXTENDED 2 MEASUREMENT CHANNELS – FSV-L CONVERTER

• Ultrasonic measurement based on the transit-time difference method
• Two independent measurement channels with a single converter
• High measurement accuracy: ±1.0%
• Fast response time: 0.2 seconds
• Bidirectional flow velocity measurement up to ±32 m/s
• Suitable for many homogeneous liquids: service water, wastewater, industrial water, seawater, pure water, irrigation water, oil
• Fluid temperature up to 200°C depending on the sensor
• Aluminum alloy converter housing with IP67 protection
• Power supply: 100 to 240 V AC, 50/60 Hz
• Available outputs: 4-20 mA, pulse, alarm, open collector contacts
• Optional RS-485 Modbus communication
• Wall mounting or pipe mounting depending on installation requirements

APPLICATIONS

• This flowmeter is particularly suitable for air conditioning systems, heating installations, ventilation and HVAC systems, as well as energy-saving applications and industrial hydraulic network monitoring.

BENEFITS

• Simultaneous measurement on two pipelines with a single converter
• Installation without pipework modifications and without plant shutdown
• Non-intrusive technology that reduces maintenance requirements
• Reliable measurement even in harsh environments
• Robust, cost-effective solution for industrial networks
• Energy consumption calculation available depending on configuration
• Easier data collection and analysis through communication functions and configuration software
