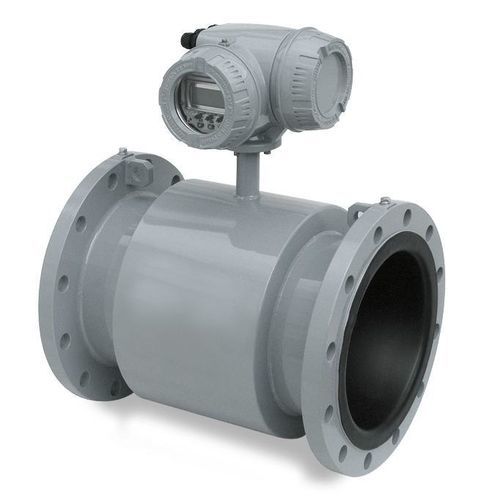

ATEX ELECTROMAGNETIC FLOWMETER M3000/4000
RELIABLE FLOW MEASUREMENT FOR HAZARDOUS AREAS

The Fuji Electric ATEX electromagnetic flowmeter M3000/4000 is designed for measuring conductive liquids in classified hazardous areas. Available in compact or remote versions, it combines measurement accuracy, mechanical robustness and configuration flexibility for demanding industrial environments.

FEATURES ATEX ELECTROMAGNETIC FLOWMETER M3000/4000

• Flow measurement for Ex zones 1 and 2 depending on the M3000 or M4000 version.
• Cast aluminium converter housing with IP67 protection.
• Compact or remote mounting to suit installation constraints.
• Accuracy up to ±0.2% of measured flow from 0.5 m/s.
• Backlit 4-line LCD display with flow, totalizers and status messages.
• Programming via 3 keys or magnetic pen with closed cover.
• Minimum conductivity of 5 µS/cm, or 20 µS/cm for demineralized water.
• Analog, pulse, frequency, relay outputs and RS232 interface.
• Available in sizes up to DN 600 depending on configuration.
• Linings available in rubber, PFA, PTFE or Halar depending on the application.

APPLICATIONS
This flowmeter is particularly suitable for pharmaceutical and chemical industries, as well as water and wastewater treatment facilities located in hazardous areas.

BENEFITS

• Safer flow measurement in ATEX environments.
• High accuracy, especially at low flow rates thanks to improved electronics.
• High installation flexibility with compact or remote versions.
• Suitable for difficult applications thanks to adjustable coil excitation frequency.
• Wide choice of sizes, process connections and lining materials.
• Reduced maintenance thanks to electromagnetic technology with no moving parts.
