Orifice flow meter RED66
volumefor gasfor steam

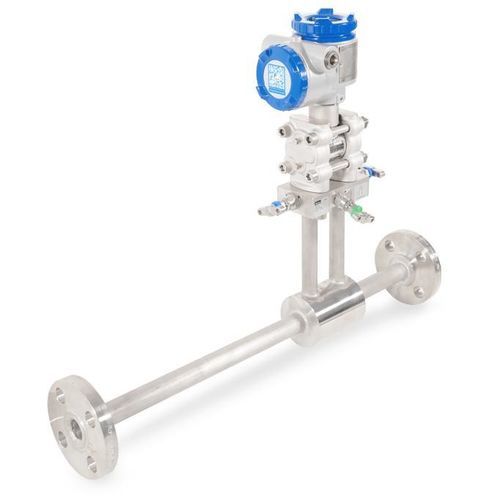

Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam
Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam
Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam - image - 2
Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam - image - 3
Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam - image - 4
Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam - image - 5
Orifice flow meter - RED66 - FUJI ELECTRIC France - volume / for gas / for steam - image - 6
Add to favorites
Compare this product
Go to the FUJI ELECTRIC France website for more information

Characteristics

Technology
orifice
Type
volume
Fluid
for liquids, for corrosive fluids, for gas, for steam
Installation
flange
Material
stainless steel
Other characteristics
compact, high-accuracy
Process temperature

Max.: 120 °C
(248 °F)

Process pressure

Max.: 160 bar
(2,320.6 psi)

Precision

2 %

Description

INTEGRAL ORIFICE FLOWMETER FOR LOW INDUSTRIAL FLOWS
RELIABLE LIQUID AND GAS FLOW MEASUREMENT IN SMALL-DIAMETER PIPES

The Fuji Electric integral orifice flowmeter is designed to accurately measure low liquid or gas flow rates. Compact, robust and easy to install, it integrates smoothly into differential pressure measurement systems.

INTEGRAL ORIFICE FLOWMETER CHARACTERISTICS
  • Measurement of very low liquid or gas flow rates
  • Direct mounting on differential pressure transmitter
  • Body machined from 316 stainless steel
  • Six interchangeable orifice bore sizes
  • Installation with standard oval flanges
  • Maximum static pressure: 160 bar
  • Maximum temperature: 120 °C
  • Accuracy up to ±2% with flow calibration

APPLICATIONS
This flowmeter is suitable for industrial process control applications involving gases, steam, corrosive and non-corrosive liquids.

ADVANTAGES
  • Simple, safe and precise installation
  • No impulse lines required thanks to direct mounting
  • Easier maintenance with oval flanges
  • Enhanced safety with the retaining ring design
  • Suitable for small-diameter pipes
  • Available as a complete calibrated assembly
