Differential pressure flow measurement orifice plate POM

Description

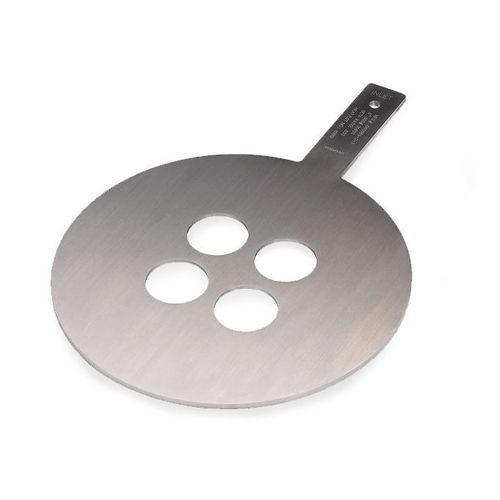

The multi-hole orifice plate flowmeter is a primary-element device for measuring fluid flow in industrial pipelines. Its plate contains multiple drilled holes to reduce flow disturbance and turbulence, improving measurement reliability. Constructed for industrial conditions, the plate is available in corrosion-resistant stainless steels to suit different media.

Fields of application

• Power generation
• Oil production and refining
• Water treatment and distribution
• Gas treatment and distribution
• Chemical and petrochemical industries

Benefits

• Accuracy: 0.5% of maximum flow
• Repeatability: 0.10%
• Suitable for steam, liquid and gas measurements

Standards and mounting
Standards: ISO 5167-1 & 2 or ASME MFC-3M
Mounting: Between flanges — ISO PN 2.5 to PN 420; ASME 150# to 2500#; other configurations on request

Reference / Technical specifications

• Reference: POM
• Material (standard): 304L / 316L stainless steel (other materials available depending on application)
• Compatible fluids: Liquid, gas, steam
• Pipe diameter: Ø 25 to 1,000 mm
• Declared accuracy: 0.5% of maximum flow
• Repeatability: 0.10%
