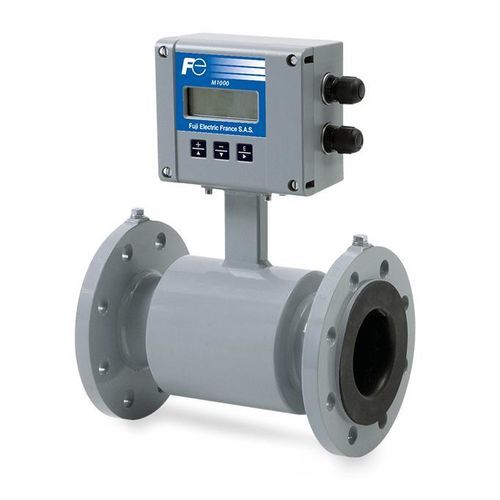

Electromagnetic flow meter M1000

volumefor waterfor wastewater

ELECTROMAGNETIC FLOWMETER M1000
A COST-EFFECTIVE AND RELIABLE SOLUTION FOR LIQUID FLOW MEASUREMENT

The Fuji Electric M1000 electromagnetic flowmeter is designed for bidirectional measurement of conductive liquids in industrial environments. Its strong price-to-performance ratio and broad integration capabilities make it a suitable solution for many installations, especially in water and wastewater treatment.

FEATURES ELECTROMAGNETIC FLOWMETER M1000

• Bidirectional flow measurement for liquids with conductivity above 5 μS/cm, and above 20 μS/cm for demineralized water.
• Accuracy of ± 0.3% of measured flow value.
• Flow range from 0.03 to 12 m/s.
• Available nominal diameters from DN 6 to DN 500.
• Backlit graphic LCD display showing instantaneous flow, totalizers, and status information.
• Communication interfaces available: Modbus RTU as standard, with HART, M-Bus, and Ethernet Modbus TCP/IP as options.
• Aluminum housing with IP67 protection.

APPLICATIONS
The M1000 is suitable for a wide range of industrial applications, particularly in water and wastewater treatment installations.

BENEFITS

• Excellent price-to-performance ratio for industrial applications.
• Compatible with all measuring tubes.
• Multiple inputs, outputs, and interfaces for easier integration.
• Reliable measurement with clear display of process data and alarms.
• IP67 protection for demanding industrial environments.
