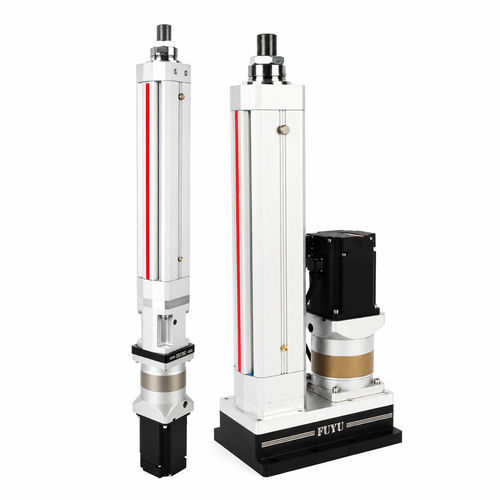

Electric servo-cylinder

ball screwwith servo-motorsteel

Short description
6063A high-strength aluminium-alloy cylinder body (strength +15%) for increased impact resistance and high axial thrust capacity. Cross-sectional area increased by 33% to prevent bending or deformation under heavy loads. Piston rod in 45# high-strength steel with hard chrome plating for wear and corrosion protection. External-circulation ball-screw nut (see parameter table). Warranty/support: 2 years or 1000 km.

Key performance items

• Thrust (rated): 1000 kg
• Protection rating: IP65
• Position accuracy: 0.02 mm
• Stroke length (example): 800 mm
• Speed range: 400 mm/s
• Operating temperature: up to 55°C

Features

• Cylinder body in 6063A aluminium alloy (+15% strength) for improved impact resistance and high thrust capacity
• 33% larger cross-sectional area to reduce bending under heavy axial loads
• Piston/rod in 45# high-strength steel with hard chrome plating for extreme wear resistance and corrosion protection
• Ball-screw drive with external circulation nut for precise, repeatable linear motion (parameter table available)
• Designed for both inline and parallel electric-actuator configurations
• Targeted applications: VR amusement equipment, heavy-load linear-motion systems and industrial simulators

Technical specifications

• Brand: FUYU
• Product type: Electric servo cylinder / linear actuator
• Rated thrust: 1000 kg
• Protection class: IP65
• Position accuracy: 0.02 mm
• Stroke length (example shown): 800 mm
• Speed: 400 mm/s
• Max. operating temperature: 55°C
• Cylinder material: 6063A high-strength aluminium alloy (+15% strength)
• Cross-sectional area: +33% vs. previous design
• Rod material/finish: 45# high-strength steel with hard chrome plating
• Ball-screw nut: external circulation (see parameter table)
• Warranty/support: 2 years or 1000 km
