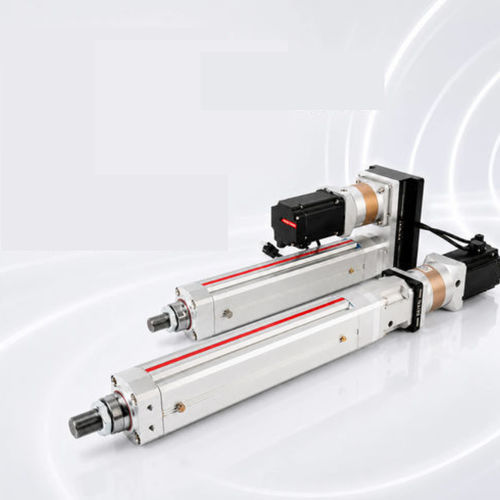

Ball screw servo-cylinder FEC80-BL

electrictelescopicwith servo-motor

Product Overview
6063 A High-Strength Aluminum Alloy Cylinder Body (Strength increased by 15%). Higher impact resistance and high thrust load capacity. 33% increase in cross-sectional area, no bending or deformation under heavy loads. 45# high-strength steel with hard chrome plating for extreme wear resistance, rust and corrosion protection. External circulation ball screw nut (parameter table provided in product detail images). Worry-free performance: 2-Year or 1000km support.

Features

• Thrust: 1000kg
• Protection Rating: IP65
• Position Accuracy: 0.02mm
• Stroke Length: 800mm
• Speed Range: 400mm/s
• Operation Temperature: 55℃

Applications and Additional Details
Product detail images include installation methods, dimension drawings and parameter charts. Shown advantages and comparative illustrations highlight suitability for heavy-load, high-precision linear motion applications and waterproof/outdoor environments.

Caractéristiques / spécifications techniques

• Cylinder body material: 6063 high-strength aluminum alloy (approx. 15% strength increase)
• Rod material / surface treatment: 45# high-strength steel with hard chrome plating
• Thrust capacity: 1000 kg
• Protection class: IP65
• Positioning accuracy: 0.02 mm
• Stroke: 800 mm
• Max speed: 400 mm/s
• Operating temperature (max): 55 °C
• External circulation ball screw nut: yes (parameter table in product images)
• Warranty / performance support: 2 years or 1000 km
