Electric servo-cylinder

telescopicball screwservo-motor

Product overview
Telescopic ball-screw electric actuator (servo cylinder) designed for high-precision linear positioning in industrial automation. Offers programmable position, speed and thrust control via multi-axis controllers and a sealed IP65 housing for dusty or splash-prone environments.

Key specifications

• Position accuracy: ±0.02 mm
• Thrust range: 400–1000 kg
• Protection rating: IP65 (dust-tight, splash resistant)
• Stroke example: 800 mm
• Maximum speed: up to 400 mm/s
• Rated operating temperature: up to 55°C

Applications

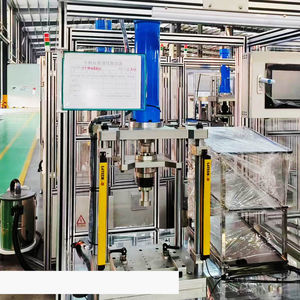

• Mold shaping and press forming
• Riveting and fastening stations
• Platform landing gear and lifting platforms
• Solar panel angle adjustment and positioning

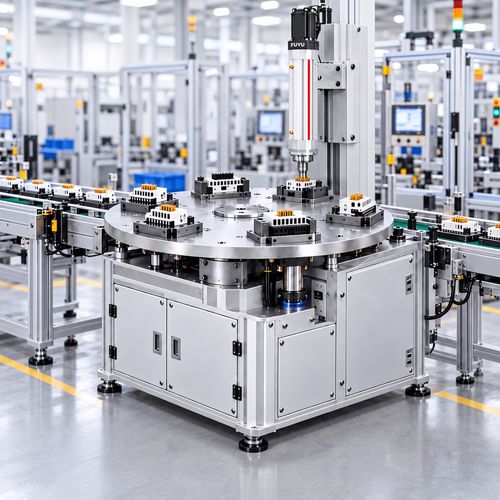

• Integration in XY/XYZ tables, pick-and-place and robotic modules

Technical details

• Actuator type: electric servo cylinder with telescopic ball-screw linear motion
• Control: position, speed and thrust adjustable via multi-axis controller
• Environment: ultra-clean, low-noise, no hydraulic fluids required
• Mounting: inline or parallel configurations depending on reference
• Variants: multiple power and stroke options available for OEM integration
