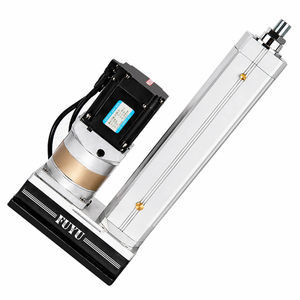

Electric servo-cylinder

ball screwservo-motorpiston

Overview
6063 A high-strength aluminum alloy cylinder body (strength increased by 15%). Higher impact resistance and high thrust load capacity. 33% increase in cross-sectional area, no bending or deformation under heavy loads. 45# high-strength steel with hard chrome plating for extreme wear resistance, rust and corrosion protection. External circulation ball screw nut parameter table. Worry-free performance: 2-Year or 1000km support.

Key Features

• High-strength 6063 aluminum alloy cylinder body (strength +15%)
• Increased cross-sectional area (33%) to resist bending and deformation
• 45# high-strength steel rod with hard chrome plating for wear and corrosion resistance
• External circulation ball screw nut design

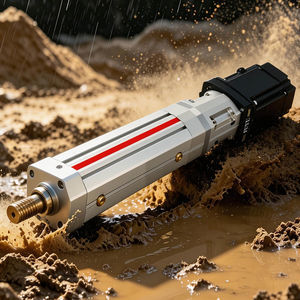

• IP65 dustproof protection
• Guaranteed support period: 2 years or 1000 km

Applications

• Linear motion and positioning tasks requiring high thrust and precision
• Automation equipment, medical devices, electronic manufacturing and other industrial uses

Caractéristiques / Spécifications techniques

• Thrust: 1000 kg
• Protection rating: IP65
• Position accuracy: 0.02 mm
• Stroke length: 800 mm
• Speed range: 400 mm/s
• Operation temperature (max): 55℃
• Cylinder material: 6063 A high-strength aluminum alloy
• Rod material/finish: 45# high-strength steel with hard chrome plating
• Ball screw: external circulation ball screw nut (parameter table available in product materials)
• Warranty/support: 2 years or 1000 km
