Electric servo-cylinder telescopicservo-motorball screw
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- telescopic, servo-motor, ball screw
- Protection class
- IP65
- Applications
- for presses
- Stroke
Min.: 800 mm
(31.496 in)Max.: 800 mm
(31.496 in)- Force
Min.: 3.92 kN
Max.: 9.81 kN
- Motor power
Min.: 750 W
(1.02 hp)Max.: 750 W
(1.02 hp)- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.4 m/s
(1.31 ft/s)- Operating Temperature
Min.: -300 °C
(-508 °F)Max.: 55 °C
(131 °F)- Repeatability
Min.: 0.02 mm
(0.0008 in)Max.: 0.02 mm
(0.0008 in)
Description
Overview
Electric cylinder with telescopic ball-screw servo actuator designed for precise, repeatable linear positioning in industrial automation. Manufacturer: FUYU Technology.
Key features
Typical applications
Technical specifications (indicative)
Certifications & notes
Electric cylinder with telescopic ball-screw servo actuator designed for precise, repeatable linear positioning in industrial automation. Manufacturer: FUYU Technology.
Key features
- Positioning accuracy: ±0.02 mm
- Telescopic ball-screw architecture for compact retraction and extended stroke
- Protection rating: IP65 (dust-tight and protected against water jets)
- Adjustable position, speed and thrust via multi-axis controller
Typical applications

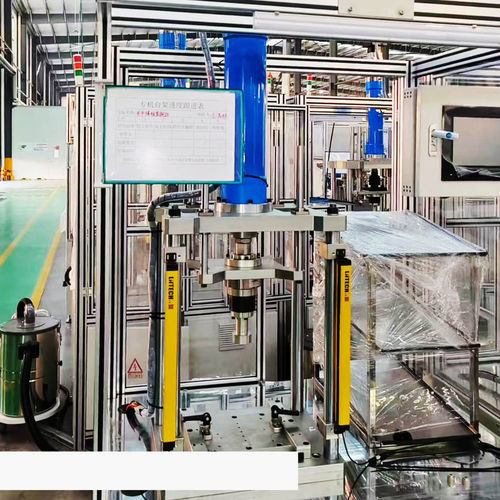

- Stamping and molding presses
- Pick-and-place and positioning systems
- Riveting and assembly equipment
- Solar panel angle adjustment, lifting platforms and automated production lines
Technical specifications (indicative)
- Thrust: 400–1000 kg
- Stroke length: 800 mm
- Speed range: up to 400 mm/s
- Operating temperature: up to 55°C
- Drive: servomotor (examples: 750 W)
Certifications & notes
- Typical certifications shown on the product page: CE, FCC, RoHS, TUV, ISO9001
- Final configuration and datasheet depend on selected variant; consult supplier for exact specifications and integration guidance
