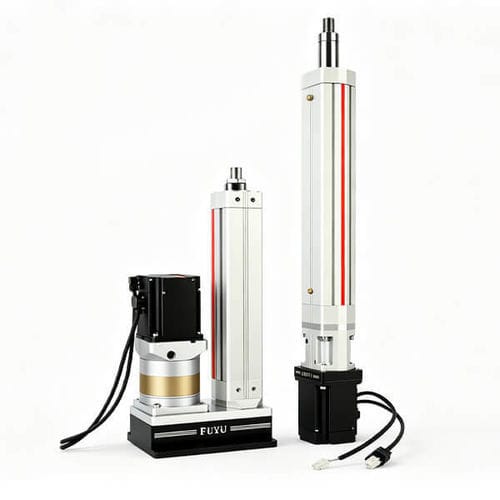

Electric actuator

linearball screwwith piston rod

Short Description:
6063 A high-strength aluminum alloy cylinder body (strength increased by 15%). Higher impact resistance and high thrust load capacity. 33% increase in cross-sectional area, no bending or deformation under heavy loads. 45# high-strength steel with hard chrome plating for extreme wear resistance, rust and corrosion protection. External circulation ball screw nut parameter table. Worry-free performance: 2-Year or 1000km support.

Key Features:

• Designed for outdoor use with IP65 protection.
• High-strength aluminum alloy body for improved impact resistance and load capacity.
• Hardened chrome-plated steel rod (45#) for wear and corrosion resistance.
• Ball screw drive with external circulation nut for reliable linear motion.
• Long service guarantee: 2 years or 1000 km support.

Additional Product Details (visuals & drawings):
Product page includes detailed parameter images, product drawings and installation method illustrations as well as detailed component photos and configuration images.

Caractéristiques / spécifications techniques:

• Thrust (as named): 10000 N
• Load Capacity: 1000 kg
• Protection Rating: IP65
• Position Accuracy: 0.02 mm
• Stroke Length: 800 mm
• Speed Range: 400 mm/s
• Operating Temperature (maximum shown): 55 ℃
• Cylinder body material: 6063 A high-strength aluminum alloy (≈15% strength increase)
• Rod material: 45# high-strength steel with hard chrome plating
• Drive type: Ball screw with external circulation nut
