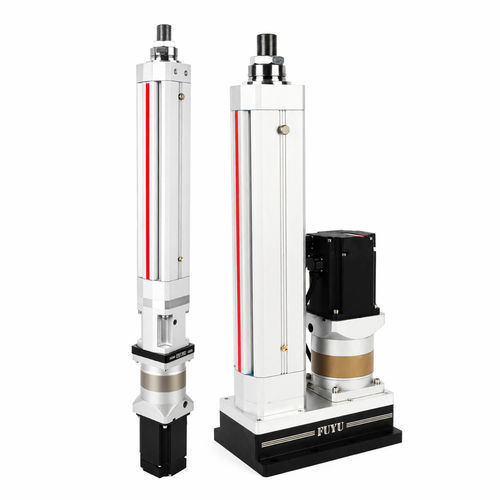

Electric servo-cylinder

ball screwtelescopicwith servo-motor

Short description
High-strength linear actuator designed for packaging and sorting conveyors requiring precise positioning and high thrust. Reinforced 6063 aluminium body and hard-chrome plated steel rod provide durability in industrial environments. Integrated ball-screw linear motion and telescoping rod enable compact installation with long stroke capability.

Key Features

• Thrust: 1000 kg
• Protection rating: IP65
• Position accuracy: 0.02 mm
• Stroke length (example): 800 mm
• Speed range: up to 400 mm/s
• Operating temperature: up to 55°C

Product detail
Technical drawings and installation images available. The actuator combines a ball-screw linear transmission with an external-circulation nut and a telescoping rod layout to deliver repeatable, high-force linear motion suitable for conveyor pick-and-place, indexing and sorting stations.

Applications

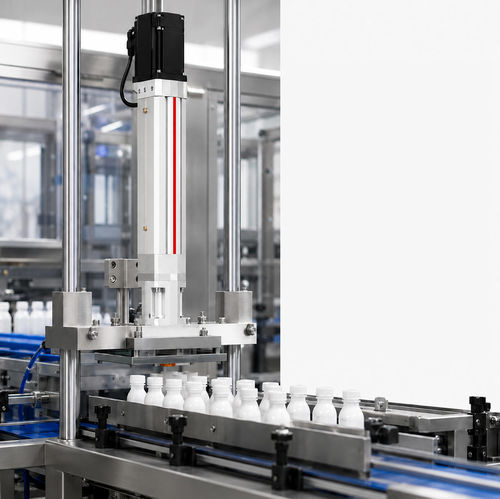

• Packaging and sorting conveyor systems
• Automated production lines and positioning modules
• Precision assembly and material handling equipment

Technical specifications

• Body material: 6063 high-strength aluminium alloy (≈+15% strength)
• Rod material: 45# high-strength steel with hard chrome plating
• Cross-sectional reinforcement: +33% area to reduce bending under load
• Transmission: ball screw with external circulation nut (parameter table available)
• Thrust (load capacity): 1000 kg
• Protection: IP65 (dust-tight and water jets resistant)
• Positioning accuracy: 0.02 mm
• Max stroke example: 800 mm (series available 50–12000 mm)
• Speed range: up to 400 mm/s
• Operating temperature: up to 55°C
• Service/Support: 2 years or 1000 km operation support as indicated
