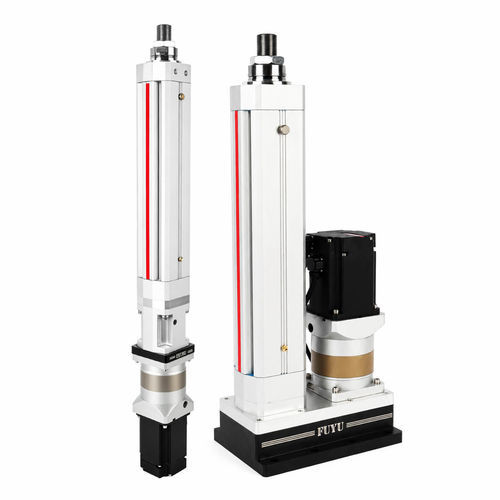

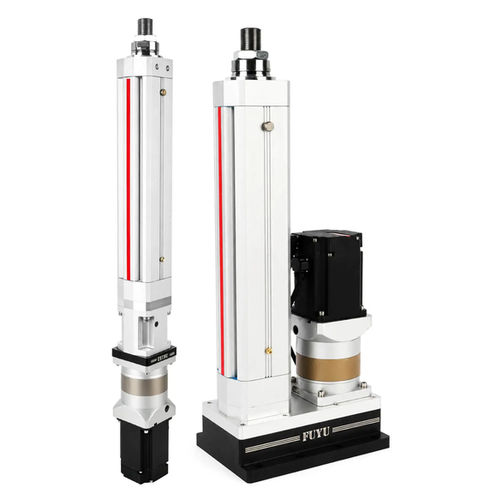

Electric servo-cylinder 6063 A

telescopicball screwwith servo-motor

Product Overview
IP65 waterproof ball-screw electric actuator (servo cylinder) with telescoping rod, designed for inline and parallel actuator configurations. Product designation may reference a 750W servo motor and provides ball-screw driven linear motion with 0.02 mm positioning accuracy.

Features

• IP65 protection (waterproof and dustproof)
• Ball-screw driven linear motion
• Telescoping rod electric actuator / servo cylinder
• 750W servo motor indicated in product designation
• High positioning accuracy: 0.02 mm
• Supports inline and parallel configurations

Applications

• Precision positioning and moulds-making applications
• Automation production lines, pick-and-place, cartesian robots and assembly systems
• Inspection, testing and handling equipment requiring repeatable, precise motion

Technical specifications

• Actuator type: Ball-screw electric actuator (servo cylinder) with telescoping rod
• Protection rating: IP65
• Motor type: Servo motor (750W indicated)
• Positioning accuracy: 0.02 mm
• Motion mechanism: Ball screw linear motion
• Mounting/configuration: Inline and parallel
• Thrust: 1000 kg
• Stroke: 800 mm
• Max speed: 400 mm/s
• Operating temperature: up to 55°C
• Materials: cylinder body AL 6063, rod/lead screw steel 45# with hard chrome plating
• Support/guarantee: 2 years or 1000 km (as indicated)
