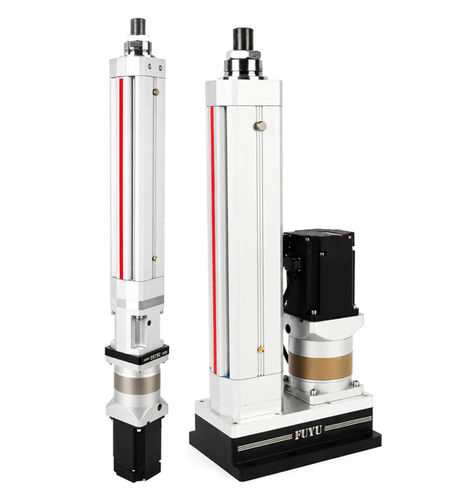

Electric actuator linearball screwtelescopic
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- ball screw, telescopic, with servo-motor
- Protection class
- IP65
- Applications
- for bed adjustment, for lifting applications, for furniture
- Stroke
Min.: 800 mm
(31.496 in)Max.: 800 mm
(31.496 in)- Force
Min.: 9.81 kN
Max.: 9.81 kN
- Speed
Min.: 0.4 m/s
(1.31 ft/s)Max.: 0.4 m/s
(1.31 ft/s)- Repeatability
Min.: 0.02 mm
(0.0008 in)Max.: 0.02 mm
(0.0008 in)
Description
Overview
Technical highlights
Manufacturer
Characteristics / Technical specifications
- Compared to pneumatic and hydraulic cylinders, servo actuators and electric cylinders provide superior position accuracy, adjustability and cleaner operation for industrial applications.
- Position accuracy: 0.02 mm
- Operation adjustability: arbitrary position, speed and thrust configurable via multi-axis controller
- Environmental performance: ultra-clean, low-noise and eco-friendly; protection rating IP65
- Typical applications: bed & sofa lifting mechanisms, riveting, platform landing gear, solar panel angle adjustment, lifting platforms and press machines
Technical highlights
- Thrust: 1000 kg
- Protection rating: IP65
- Position accuracy: 0.02 mm
- Stroke length (example): 800 mm
- Speed range: up to 400 mm/s
Manufacturer

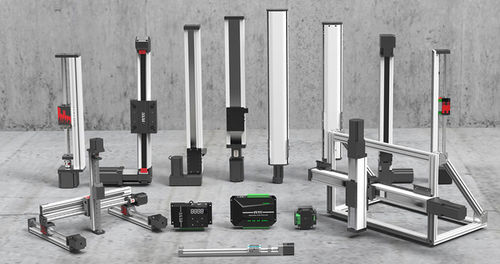

- FUYU is a manufacturer of intelligent linear motion systems. Main products include ball‑screw linear modules, belt‑driven linear guides, electric actuators, positioning stages and motion controllers for Cartesian robots.
- Certifications: CE, FCC, RoHS, TUV, ISO9001.
- Multi‑axis positioning systems: stroke range 50 mm–12000 mm, position accuracy 0.02 mm–0.2 mm, load capacity 3 kg–180 kg.
Characteristics / Technical specifications
- Type: ball‑screw electric actuator / servo cylinder with telescopic rod
- Motion: linear motion
- Drive: ball screw with servomotor
- Protection: IP65 (waterproof)
- Noise: low‑noise design suitable for near‑quiet environments
- Position accuracy: 0.02 mm
- Thrust: 1000 kg
- Stroke length: 800 mm (example)
- Speed: up to 400 mm/s
- Control: suitable for multi‑axis controllers for precise positioning and coordinated motion
