Electric servo-actuator lineartelescopicservo-motor
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- telescopic, servo-motor
- Protection class
- IP65
- Applications
- for medical applications
- Other characteristics
- precision
- Stroke
Min.: 50 mm
(1.969 in)Max.: 12,000 mm
(472.441 in)800 mm
(31.496 in)- Force
10 kN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.4 m/s
(1.31 ft/s)- Repeatability
0.02 mm
(0.0008 in)
Description
Product overview
Medical applications
Key specifications
Operational advantages
Manufacturer and certifications

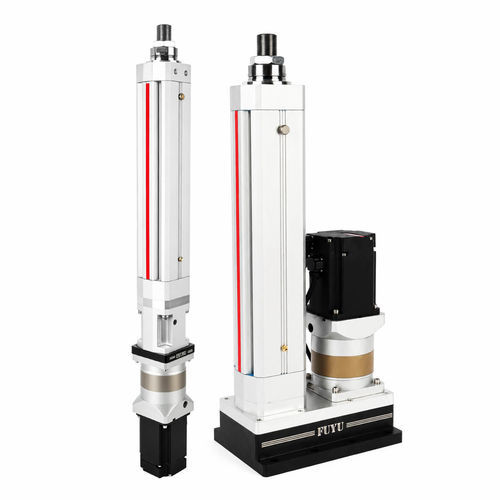

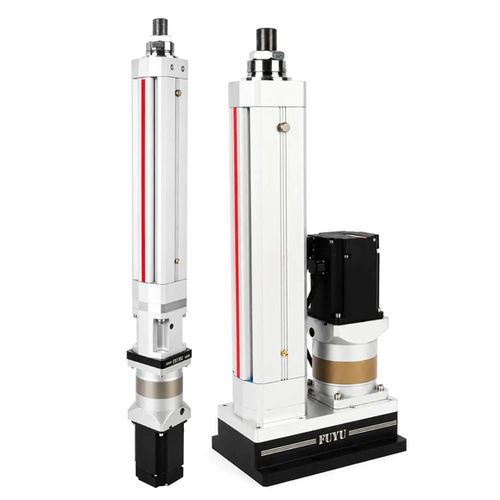

- Electric telescopic-rod actuator (servo-driven linear actuator) designed for medical-device and precision automation applications.
- High thrust: 10 kN (approx. 1000 kg); telescopic rod design for compact retracted length and extended stroke (example: 800 mm).
- Drive: servo motor compatible with multi-axis controllers; protection rating IP65.
Medical applications
- Patient positioning systems, surgical tables and imaging device adjustments.
- Automated sample handling, laboratory instrumentation and diagnostic equipment.
- Cleanroom and low-noise environments where contamination and acoustic disturbance must be minimized.
Key specifications
- Thrust: 10 kN (≈1000 kg)
- Position accuracy: 0.02 mm
- Stroke (example configuration): 800 mm
- Speed: up to 400 mm/s
- Protection rating: IP65
Operational advantages
- Precise and repeatable positioning with programmable control of position, speed and thrust via multi-axis controllers.
- Cleaner and quieter operation compared with pneumatic and hydraulic systems — suitable for sensitive medical environments.
- Compact telescopic design maximizes available stroke while minimizing installation envelope.
Manufacturer and certifications
- Manufacturer: FUYU Technology (FUYU Motion)
- Certifications: CE, FCC, RoHS, TUV, ISO9001
- Available configurations: strokes from ~50 mm to 12,000 mm; precision options 0.02–0.2 mm depending on model.
