Electric servo-actuator FEC80
linearwith servo-motortelescopic

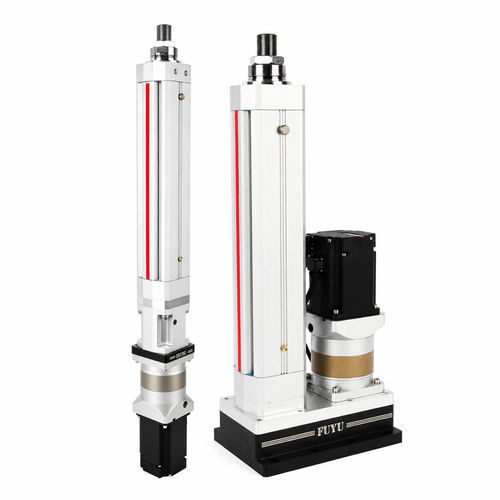

Electric servo-actuator - FEC80 - FUYU Technology - linear / with servo-motor / telescopic
Electric servo-actuator - FEC80 - FUYU Technology - linear / with servo-motor / telescopic
Electric servo-actuator - FEC80 - FUYU Technology - linear / with servo-motor / telescopic - image - 2
Add to favorites
Compare this product
Go to the FUYU Technology website for more information

Characteristics

Type
electric
Movement
linear
Technology
with servo-motor, telescopic
Protection class
IP65
Applications
industrial
Other characteristics
for heavy loads, position-sensing, programmable
Stroke

800 mm
(31.496 in)

Force

10 kN

Speed

Min.: 0 m/s
(0 ft/s)

Max.: 0.4 m/s
(1.31 ft/s)

Repeatability

0.02 mm
(0.0008 in)

Description

Short description
  • Electric linear actuator with telescopic rod and integrated servo motor designed for industrial positioning tasks where high thrust and precise control are required.
  • Compared with pneumatic and hydraulic cylinders, this servo actuator delivers higher positioning accuracy, programmable motion profiles and cleaner, quieter operation. Protection rating IP65.


Key features
  • Thrust: 10 kN (approx. 1000 kg)
  • Load capacity: 1000 kg
  • Position accuracy: 0.02 mm
  • Stroke length (example model): 800 mm
  • Speed range: up to 400 mm/s
  • Protection rating: IP65
  • Rod type: Telescopic rod driven by servo motor
  • Control: Arbitrary position, speed and thrust control via multi-axis controller


Technical specifications
  • Drive: Electric servo-driven (ball-screw or equivalent mechanism)
  • Repeatability / positioning accuracy: 0.02 mm
  • Stroke examples: 800 mm (other strokes available on request)
  • Speed: up to 400 mm/s depending on configuration
  • Environmental protection: IP65
  • Integration: Compatible with multi-axis positioning platforms, XY tables and XYZ stages
  • Mounting: Multiple mounting options and custom interfaces available


Typical applications
  • Industrial riveting and joining equipment

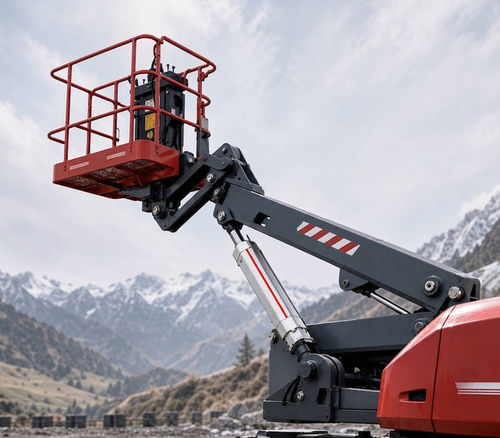

  • Platform landing gear and lifting platforms
  • Solar panel angle adjustment systems
  • Press machines and heavy-duty positioning stations
  • Automation systems requiring precise linear motion with high thrust


Notes
  • Product can be customized for stroke, speed and mounting interfaces. Contact FUYU Technology Co., Ltd. for detailed configurations, CAD files and integration support.
