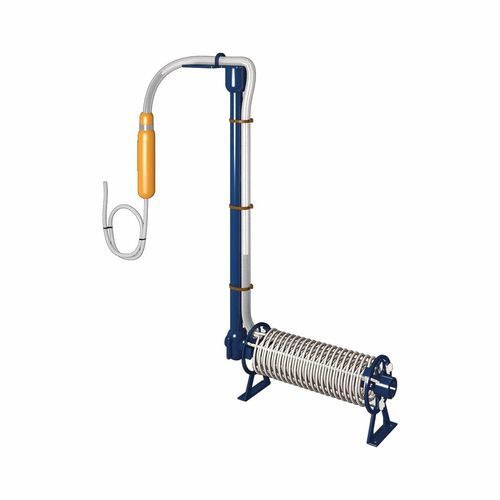

Removable immersion heater P

tank bottomPTFEcustom-made

Overview
Galvatherm® cylindrical immersion heaters - P‑Mount type are all‑plastic models designed for power outputs up to 15 kW. They include integrated feet to elevate the heating zone from the tank bottom, providing an efficient solution for heating of liquids in industrial tanks.

Technical Specifications

• Power: up to 15 kW, suitable for high‑power applications.
• Available diameters: 85 mm and 125 mm.
• Materials: PFA fluoropolymer‑insulated heating cable mounted on a PP or PVDF plastic rod (ø 20 mm).
• Installation: designed for bottom‑of‑tank installation with integrated feet to raise the heating section.

Key Benefits

• All‑plastic construction: non‑metallic design for chemical compatibility and reduced risk of corrosion.
• Raised heating zone: integrated feet prevent direct contact with the tank bottom, improving heat transfer and reducing hot spots.
• Chemical and operational resistance: selected plastics provide longevity and resistance to aggressive media common in industrial processes.
• Installation flexibility: compatible with different tank configurations; rigid, non‑heating riser can be custom made for the application.

Main Applications

• Heating of process liquids in industrial tanks, mounted at the tank bottom.
• Specific use in chemical baths and treatment vessels.
• Water and wastewater treatment applications.

Safety and Compliance

• Complies with the requirements of EN 60519‑1/2.

Options and Accessories

• Ø75 mm cable gland: PP ref. PEPP / PVDF ref. PEPF — allow 300 mm clearance on length H (mounting height on N).
• Cable extensions: power cable types HO5 VV‑F or HO7 RN‑F; non‑heating cable N for tank outlet.
• Removable protector: perforated plastic mesh protector in PP (for 85 and 125 mm diameters) — PP ref. PRCPP.

Technical Characteristics

• Power rating: up to 15 kW.
• Diameters: 85 mm, 125 mm.
• Heating element insulation: PFA fluoropolymer.
• Support rod: PP or PVDF plastic rod, ø 20 mm.
• Mounting: P‑Mount bottom‑of‑tank installation with integrated feet to elevate the heating zone.
• Accessories compatibility: Ø75 mm cable gland, cable extensions (HO5 VV‑F / HO7 RN‑F), removable PP protector.
• Standards: EN 60519‑1/2 compliance.
