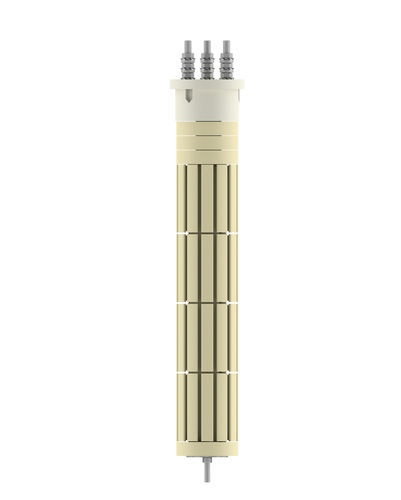

Tank bottom immersion heater CALOR

flangescrew plugcustom-made

Overview: CALOR sheathed immersion heaters are designed for thermal efficiency and adaptability to a range of industrial liquids, including aqueous and non-aqueous fluids. They are constructed for prolonged operation in demanding industrial conditions.

Technical Specifications:

• Materials: Grooved ceramic body and high-temperature-resistant heating wire.
• Heated length: Varies according to the selected model; customizable.
• Unheated zone: Standard 50 mm or configurable to application requirements.
• Compatibility: Suitable for aqueous and non-aqueous fluids depending on process parameters and materials selection.
• Bindings / Fixing methods available:
  • Mounting flange
  • Weld-on flange
  • Threaded fitting (with G 2" threaded end)
  • PP terminal box (ref. BC)
  • PVDF terminal box (ref. BC/L)
  • Galvanized steel terminal box (Ref. B) - IP64
  • Flange-mounted immersion heater for secure, durable mounting
  • Screw-in immersion heater, for fast and versatile installation

Key Benefits:

• Effective heat transfer: High-resistance heating wire designed for efficient thermal transmission and long service life.
• Electrical configurations: Available in single-phase, two-phase and three-phase options to match site power requirements.
• Durable insulating structure: Grooved ceramic body providing mechanical strength and reliable electrical insulation.
• Customizability: Choice of metal materials, tailored heated and unheated lengths and multiple fixing methods for application-specific designs.

Main Applications:

• Chemical industry
• Food industry
• Tank bottom heating

Options & Accessories:

• Weld-on flange
• Screw-on flange
• Threaded fitting (G 2" threaded end)
• BC terminal box (head material: PP)
• BC/L terminal box (head material: PVDF)
• Galvanized steel terminal box (Ref. B, IP64)
• Various mounting and attachment methods; bespoke heated/unheated lengths and metal options

Additional resources: Installation instructions and technical data sheets (product manuals and technical specifications) are available for the CALOR range in PDF format.

Technical characteristics / Specifications:

• Grooved ceramic body
• High-temperature-resistant heating wire
• Heated length: variable by model
• Standard unheated zone: 50 mm (customizable)
• Compatibility with aqueous and non-aqueous fluids (application-dependent)
• Available electrical configurations: single-phase, two-phase, three-phase
• Fixing options: mounting flange, weld-on flange, screw-on flange, threaded fitting (G 2"), screw-in or flange-mounted
• Terminal box options: PP (BC), PVDF (BC/L), galvanized steel (Ref. B, IP64)
