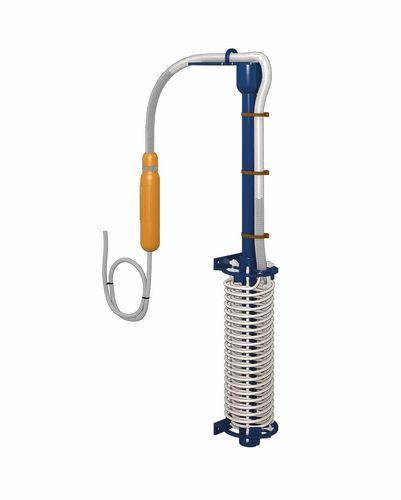

Tank bottom immersion heater R

removable

Description
Galvatherm® cylindrical immersion heaters, R‑Mount type, are all‑plastic units designed for power ratings from 0.5 kW up to 15 kW. They provide a compact, corrosion‑resistant heating solution for small tanks and process baths where a plastic construction and flexible outlet are required.

Technical Specifications

• Power range: from 0.5 kW up to 15 kW.
• Available diameters: 85 mm and 120 mm.
• Heating cable: PFA‑insulated heating cable secured by PP or PVDF retention bands.
• Outlet: flexible, non‑heating outlet without ring structure; suitable for edge or bottom tank mounting; compatible with C85 and C12 immersion heater references.

Key Benefits

• All‑plastic construction for chemical resistance and application flexibility.
• Rigid assembly enabling high power ratings within a compact footprint.
• Simplified installation compared with conventional heaters; adaptable to different tank configurations.
• Electrical protection in accordance with EN 60519‑1/2; equipotential grounding provided (protection class 1).

Main Applications

• Heating of liquids in small process tanks and reservoirs (edge or bottom installation).
• Chemical bath heating and treatment baths.
• Water and wastewater treatment processes.

Safety and Compliance

• Designed and tested to meet EN 60519‑1/2 requirements.
• Electrical protection: Class 1 with grounding system.

Options and Accessories

• Ø75 mm cable gland: allow 300 mm clearance on length H (mounting height on N). PP reference: PEPP; PVDF reference: PEPF.
• Cable extension: power cable C available in HO5 VV‑F or HO7 RN‑F; non‑heating cable N for tank outlet.
• Removable protector: perforated plastic mesh protector in PP available for 85 and 125 mm diameters. PP reference: PRCPP.

Characteristics / Technical specifications

• Product family: Cylindrical immersion heater – R‑Mount.
• Brand: Galvatherm®.
• Nominal power: from 0.5 kW (up to 15 kW depending on configuration).
• Available diameters: 85 mm, 120 mm.
• Heating cable insulation: PFA.
• Retention bands: PP or PVDF.
• Outlet: flexible, non‑heating, no ring structure; suitable for edge or bottom tank mounting; compatible with C85 and C12 models.
• Standards: compliant with EN 60519‑1/2.
• Electrical protection: protection class 1; grounding system provided.
• Accessories and references: cable gland (PEPP / PEPF), cable extension (HO5 VV‑F or HO7 RN‑F), removable protector (PRCPP).
