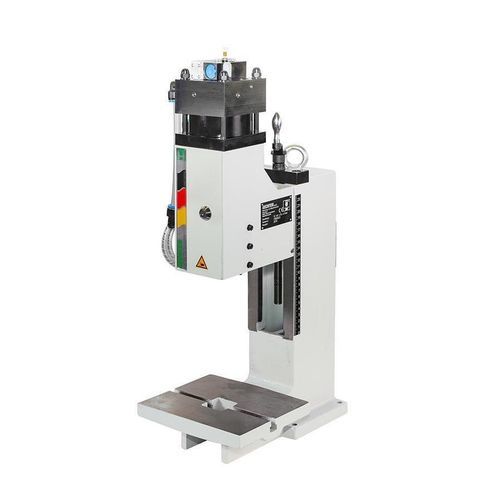

Pneumatic press 4 LPL

assemblywith pedal control

Overview
Linear acting pneumatic press designed for precision pressing and assembly tasks. Operation via start button or contact release by tool. Removable clamped piece and play-free adjustable prism guide allow safe, damage-free handling of the clamped workpiece.

Dimension table
A2 : 800
B : 580
C : 415
D : 200
E : 120
F : 92
G : 75
U : 21
V : Ø 10 H7
X : 73-240
X1 : 4 (5.9)
Ymax : 778

Accessories / Supplies

• Standard press without accessories
• Standard press with enlarged throat
• Standard press with enlarged installation height
• Support table for lateral attachment to the press base (right side), height adjustable
• Pneumatic stroke counter
• Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
• Footswitch
• Centering plate with middle bore
• Press base H approx. 800 x W 690 x D 565 mm adjustable with machine bearing elements
• Press base H approx. 700 x W 690 x D 565 mm adjustable with machine bearing elements
• Support table for lateral attachment to the press base (left side), height adjustable
• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Clamping bracket, approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)
• Clamping bracket, approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)

Unique to GECHTER
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin. 2x DIN 650 M8x10 table notch fixation.

Technical specifications

• Press type: Linear acting pneumatic presses
• Operation: Start button or contact release by tool
• Overhang: 120 mm
• Installation height adjustable: 73 – 240 mm
• Pressing force / power stroke / operating pressure: 4 kN / 7.8 bar
• Stroke length: 4 mm (5.9 mm with safe tool)
• Pressing force / operating pressure (alternative entry on page): 56 kN / 6.5 bar
• Force generation: Pneumatic cylinder
• Operating pressure (working range): 3 - 7.8 bar
• Location bore: Ø10 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Height adjustment guide unit: Hand crank
• Fastening guide unit per screw: 90 Nm
• Connection hose: 1/4"
• Standard color: RAL 7035
• Weight: 36 kg
