Pneumatic press 45 LPL

formingassemblytoggle

Product

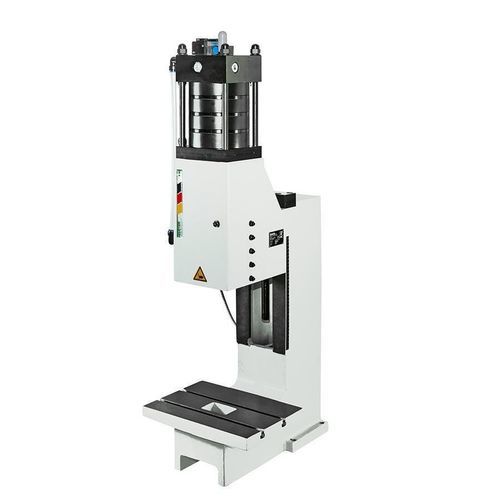

Pneumatic knee-lever press LPL, 45 kN pressing force. Suitable for repetitive pressing, forming and assembly operations in industrial production.

Dimension table
A2: 950
B: 760
C: 715
D: 340
E: 200
F: 150
G: 120
U: 44
V: Ø 25 H7
X: 115-370
X1: 4 (5.9)
Ymax: 1465

Supplies / Accessories

• Base: Standard press without accessories
• Base: Standard press with enlarged throat
• Base: Standard press with enlarged installation height
• Accessories: Clamping pin without collar
• Accessories: Clamping pin with collar
• Accessories: Press base approx. H 800 x W 690 x D 565 mm adjustable with machine bearing elements
• Accessories: Press base approx. H 700 x W 690 x D 565 mm adjustable with machine bearing elements
• Accessories: Support table for lateral attachment to the press base (left side), height adjustable
• Accessories: Support table for lateral attachment to the press base (right side), height adjustable
• Accessories: Pneumatic stroke counter
• Accessories: Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
• Accessories: Footswitch
• Accessories: Centering plate with middle bore
• Sliding table: Heavy-duty sliding table, mechanical
• Sliding table: Heavy-duty sliding table, mechanical with locking bolt
• Clamping bracket: Clamping bracket, approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)
• Clamping bracket: Clamping bracket, approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)

Unique features
Play-free adjustable prism guide. Clamped piece removable forwards without damaging the clamping pin.

Technical specifications

• Press type: Pneumatic toggle (knee-lever) press
• Operation: Start button or contact release by tool
• Overhang: 200 mm
• Installation height adjustable: 120 - 370 mm
• Stroke length: 4 mm; 5.9 mm with safe tool
• Pressing force / operating pressure: 45 kN / 6.5 bar
• Force generation: Pneumatic cylinder
• Operating pressure: 3 – 6.5 bar
• Location bore: Ø25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Height adjustment guide unit: Ratchet
• Fastening guide unit per screw: 170 Nm
• Connection hose: 1/2"
• Standard color: RAL 7035
• Weight: 208 kg
