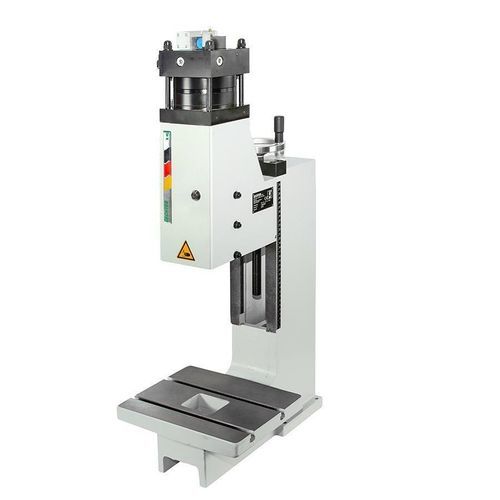

Pneumatic press 13 LPLassemblywith pedal controldirect-acting
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- assembly
- Other characteristics
- with pedal control, direct-acting
- Force
13 kN
- Stroke
Min.: 4 mm
(0.157 in)Max.: 5.9 mm
(0.232 in)- Max. pressure
Min.: 3 bar
(44 psi)Max.: 7 bar
(102 psi)- Weight
94 kg
(207 lb)
Description
Overview
Dimension table
A2: 930
B: 650
C: 590
D: 300
E: 160
F: 130
G: 100
U: 29
V: Ø 15 H7
X: 100-320
X1: 4 (5.9)
Ymax: 1101
Accessories and options
Unique
Specifications / technical data
- Linear acting pneumatic press designed for precision pressing and assembly tasks.
- Operation: Start button or contact release by tool.
Dimension table
A2: 930
B: 650
C: 590
D: 300
E: 160
F: 130
G: 100
U: 29
V: Ø 15 H7
X: 100-320
X1: 4 (5.9)
Ymax: 1101
Accessories and options
- Base: Standard press without accessories
- Base: Standard press with enlarged throat
- Base: Standard press with enlarged installation height
- Press base approx. H approx. 700 x W 690 x D 565 mm adjustable with machine bearing elements
- Press base approx. H approx. 800 x W 690 x D 565 mm adjustable with machine bearing elements
- Support table for lateral attachment to the press base (left side), height adjustable
- Support table for lateral attachment to the press base (right side), height adjustable
- Pneumatic stroke counter
- Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
- Footswitch
- Centering plate with middle bore
- Clamping pin without collar
- Clamping pin with collar
- Heavy-duty sliding table, mechanical
- Heavy-duty sliding table, mechanical with locking bolt
- Clamping bracket, approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)
- Clamping bracket, approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)
Unique
- Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.
- Table fixation: 2x DIN 650 M8x10 (illustrated)
Specifications / technical data
- Press type: Linear acting pneumatic presses
- Operation: Start button or contact release by tool
- Overhang: 160 mm
- Installation height adjustable: 100 - 315 mm
- Stroke length: 4 mm, 5.9 mm with safe tool
- Pressing force / operating pressure: 13 kN / 7 bar
- Force generation: Pneumatic cylinder
- Operating pressure: 3 - 7 bar
- Location bore: Ø15 H7
- Clamped piece: Removable clamped piece
- Twist-free guide: Prism guide
- Guide play-free adjustable: By adjustment gib
- Height adjustment guide unit: Hand crank
- Fastening guide unit per screw: 120 Nm
- Connection hose: 1/4"
- Standard color: RAL 7035
- Weight: 94 kg
