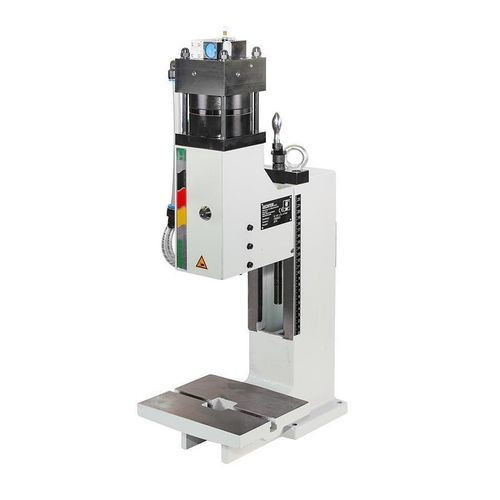

Pneumatic press 8 LPL

formingassembly

Product overview
The pneumatic linear press LPL delivers 8 kN pressing force with a 4 mm stroke (5.9 mm with safety tool). It is intended for repetitive pressing, assembly and forming operations where adjustable installation height and precise guidance are required.

Dimension table

• A2: 800
• B: 580
• C: 415
• D: 200
• E: 120
• F: 92
• G: 75
• U: 21
• V: Ø 10 H7
• X: 73-240
• X1: 4 (5.9)
• Ymax: 778

Accessories / Supplies (selection shown on page)

• Base: Standard press without accessories
• Standard press with enlarged throat
• Standard press with enlarged installation height
• Footswitch
• Centering plate with middle bore
• Press base (approx. H 800 x W 690 x D 565 mm) adjustable with machine bearing elements
• Press base (approx. H 700 x W 690 x D 565 mm) adjustable with machine bearing elements
• Support table for lateral attachment to the press base (left side), height adjustable
• Support table for lateral attachment to the press base (right side), height adjustable
• Pneumatic stroke counter
• Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
• Heavy-duty sliding table (mechanical)
• Heavy-duty sliding table, mechanical with locking bolt
• Clamping bracket variants (approx. H 160 x W 130 x H 58 mm and H 160 x W 130 x H 118 mm)

Unique
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin. Mounting: 2x DIN 650 M8x10.

Technical specifications

• Press type: Linear acting pneumatic press
• Operation: Start button or contact release by tool
• Overhang: 120 mm
• Installation height adjustable: 73 – 240 mm
• Pressing force / power stroke / operating pressure: 8 kN / 7.8 bar
• Stroke length: 4 mm (5.9 mm with safe tool)
• Force generation: Pneumatic cylinder
• Operating pressure: 3 - 7.8 bar
• Location bore: Ø10 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Height adjustment guide unit: Hand crank
• Fastening guide unit per screw (torque): 90 Nm
• Connection hose: 1/4"
• Standard color: RAL 7035
• Weight: 40 kg
