Pneumatic press 20 LPL

togglewith pedal control

General

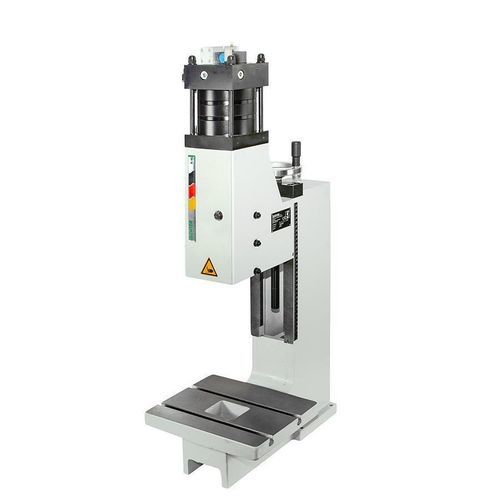

Pneumatic linear-acting toggle press model LPL with a nominal pressing force of 20 kN. Engineered for precision pressing and assembly operations with a removable clamped piece and a play-free adjustable prism guide. Installation height and stroke options support repetitive production and tool changes.

Dimension table
A2: 930
B: 650
C: 590
D: 300
E: 160
F: 130
G: 100
U: 29
V: Ø 15 H7
X: 100-320
X1: 4 (5.9)
Ymax: 1161

Accessories / Supplies

• Standard press without accessories
• Standard press with enlarged throat
• Standard press with enlarged installation height
• Press base H approx. 700 x W 690 x D 565 mm adjustable with machine bearing elements
• Support table for lateral attachment to the press base (left side), height adjustable
• Support table for lateral attachment to the press base (right side), height adjustable
• Pneumatic stroke counter
• Additional pushbutton control for defined triggering (e.g., for sheltered workshops)
• Footswitch
• Centering plate with middle bore
• Clamping pin without collar
• Clamping pin with collar
• Press base H approx. 800 x W 690 x D 565 mm adjustable with machine bearing elements
• Heavy-duty sliding table, mechanical
• Heavy-duty sliding table, mechanical with locking bolt
• Clamping bracket, approx. H 160 x W 130 x H 118 mm (only for stands with enlarged overhang)
• Clamping bracket, approx. H 160 x W 130 x H 58 mm (only for stands with enlarged overhang)

Unique
Play-free adjustable prism guide ensures twist-free tool guidance. The removable clamped piece can be pulled forward without damaging the clamping pin, facilitating quick part changes and maintenance.

Characteristics / Technical specifications

• Model series: LPL
• Nominal pressing force: 20 kN
• Operation: Start button or contact release by tool
• Overhang: 160 mm
• Installation height adjustable: 100 - 315 mm
• Stroke length: 4 mm (5.9 mm with safety tool)
• Pressing force / operating pressure: 20 kN / 7 bar
• Force generation: Pneumatic cylinder
• Operating pressure range: 3 - 7 bar
• Location bore: Ø15 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Prism guide
• Guide play-free adjustable: By adjustment gib
• Height adjustment guide unit: Hand crank
• Fastening guide unit per screw: 120 Nm
• Connection hose: 1/4"
• Standard color: RAL 7035
• Weight: 96 kg
